LUXCANVAS™
Easy-to-Install, Customizable Luminous LED Textile Illumination for Ceilings & Walls: LUXCANVAS™
Recreate the effect of natural daylight without needing to open a window with our edgeless LUXCANVAS™ LED Illuminated Textile Lighting. LUXCANVAS™ is a multifunctional, all-inclusive fabric light box system that will transform the walls and ceilings of your environment into artistic illuminated masterpieces. Boasting a clean, frameless look, this beautiful low-profile lighting fixture is designed to seamlessly integrate into any architectural space it is meant to illuminate as a recessed, surface, or suspended lighting solution.
DOWNLOAD
SPECIFICATION
LUMEN DATA
APPLICATIONS
DOWNLOAD
SPECIFICATION
MECHANICAL
Safety Standard
- Compliance UL Listed
- Warranty 5 years
Material
- Frame Material Anodized aluminum
- Textile Surface Material 100% Flame-retardant polyester
- Textile Installation Silicone beading
- Flexible Silicone Beading Silicone
- White Fabric Blockout Polyester
Material
- Seamless Textile Dimensions
- Min. ≥ 18″ x 18″ (457mm x 457mm)
- Max. ≤ 120″ (3048mm width x any length)
- Fabric Size Equivalent to exterior frame
- Profile Height (Frame) 4.7″ (120mm)
- Exterior Frame 4.7″ (120mm)
- Orientation Portrait & landscape
- Flexible Silicone Beading 0.55″ x 0.098″ (14mm x 2.5mm)
Finish
- Standard Silver anodized aluminum
- Custom Color Powder coated (available upon request)
- Print Process
- White fabric (unprinted)
- Digital dye-sublimation (printed)
ELECTRICAL
Light Engine Options
LUXCANVAS is powered by our cuttable LUXFLEX LED Flexible Sheet backlight engine series. Choose the LUXFLEX backlight option that best suits your application needs.
- LUXFLEX Standard For standard single color white CCT indoor applications
- LUXFLEX Premium For higher-power single color white CCT applications requiring damp location treatment.
- LUXFLEX RGBW For colorful backlighting with RGBW color mixing.
Photometrics
- Distribution Lambertian
- Standard Color Temperatures 3000K • 4100K • 5300K • 6500K • RGBW
- Custom Color Temperatures Inquire for more information; custom requests may extend production lead time.
- Color Rendering Index (CRI) ≤ 90
- Color Uniformity 3SDCM
- Maintenance Factor L70 50,000+ hours
Power Supply
- Remote Class 2 Power Supply Up to 100W
- Input Voltage 24VDC; 100-277VAC, 50-60Hz
- Universal Power Supply Available upon request
- Power Supply Location Inside the assembled profile. See spec sheet for additional details.
Dimming Options (Single Color CCTs)
- Pulse-width modultation (PLM)
- 0-10V dimming
- Magnetic low-voltage (MLV)
LUMEN DATA
APPLICATIONS
APPLICATIONS
- Luminous Ceilings & Walls
- Retail Environments
- Airports
- Museums
- Showrooms (such as automobile showrooms)
- Corporate Offices
- Trade Show Exhibitions
SAFETY
- Electric Code Compliance Please make sure to install LUXCANVAS™ in accordance with standard national and local electrical codes.
INSTALLATION
- Environment Indoor, dry location only
- Operating Temperature 32˚F ~ +104˚F (0˚C ~ +40˚C )
- Ambient Temperature -40˚F ~ +185˚F max (-40˚C ~ +85˚C)
- Mounting Options
- Surface mount
- Recessed
- Suspended
- Multi-Paneling Oversize installations exceeding 10′ in length on more than one side will be shipped knocked-down in a multi-paneled format with the power supply installed directly inside of the LUXCANVAS frame.

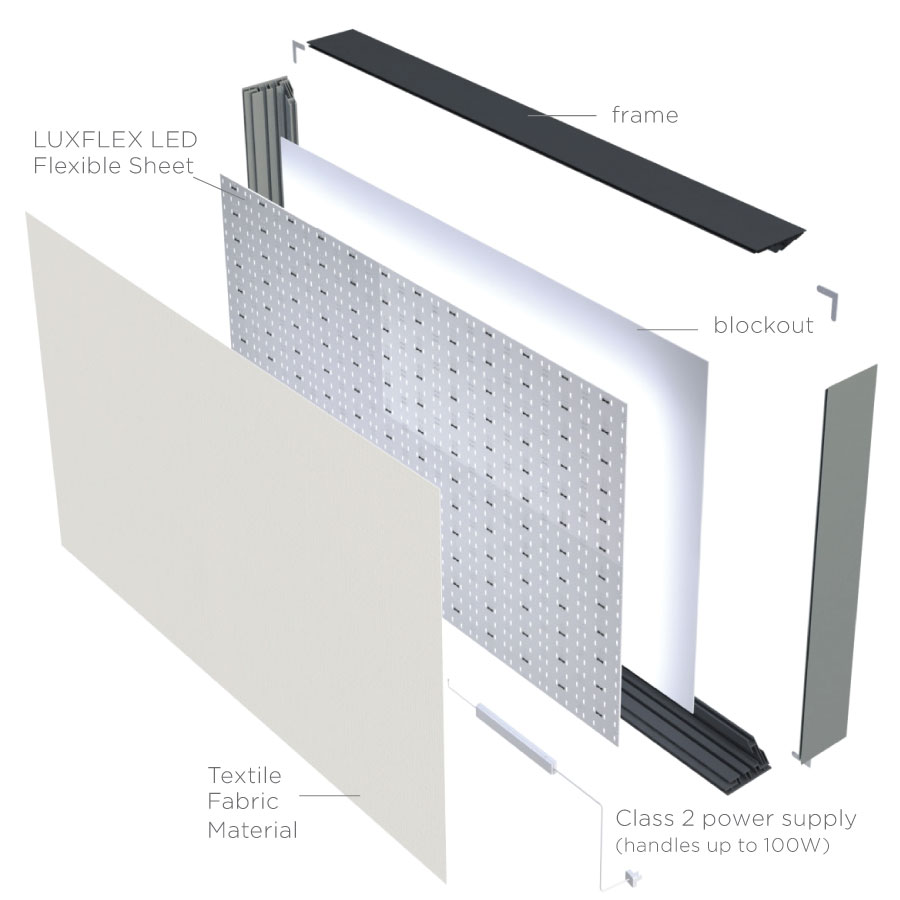

Product Exploded View
Product Features
Quick Fabric Changes
Surface Mount
Frameless Design
Recessed
Even Lighting – No Dark Spots
Illuminated Ceilings
Compact Profile
Illuminated Walls
Suspended
Customize
Plug & Play Available
Custom Frame Colors
Certifications
