Fabric Light Box (Profile 200)
Fabric Light Box (Profile 200)
The Profile 200 Fabric Light Box is designed for heavy-duty, large-scale applications that require illumination on one or both sides. Great for hanging in retail windows or prominently displayed as a double-sided, freestanding marketing solution, Profile 200 enjoys many of the benefits of its 100 and 120 counterparts while boasting specific features unique to it. Get ready to watch your sales soar when accessorizing this profile for added value with TV mounts and other popular retail display accessories!
Powered by Perimeter Lighting, the Profile 200 Fabric Light Box Integrates the technology of LED module strips with a frameless anodized aluminum frame allows for seamless application to virtually any environment. Our thickest option in our line of Fabric Light Boxes, the Profile 200 Fabric Light Box is ideal for store window displays, with double-sided graphic display capability.
Perimeter Lighting uses LED modules that only use 15 Watts per LED module with a life expectancy of over 50,000 hours – an energy efficient lighting solution. Replacement of the modules is a simple and convenient task and can be easily done on the spot.. All lighting components are UL approved.
Product Specification
Safety Standard
UL Listed Electric Sign (E340401)
Frame
- Depth 7.87″ (200mm)
- Frame Size
- Minimum Graphic Size 20″ x 20″ (508mm x 508mm)
- Maximum Graphic Size 120″ (3048mm) x any length
- Outside Dimensions Equivalent to graphic size
- Orientation
- Portrait
- Landscape
Finish
- Standard Silver anodized aluminum
- Custom Color Powder coated (available upon request)
Packaging
- Shipped Knocked Down (Disassembled) For large scale projects
- Crated For large scale projects
Mounting Options
- Hanging With aviation cable or eyehooks
- Freestanding Attaches to foot stand
- Standard feet
- Heavy-duty stainless steel feet
- Custom Mounting Hardware kits available for your desired application
Lighting Options
- Color-Changing RGB Provides unique colored effect
- Easy Dimming Provides control of the lighting intensity
Fabric
- Graphic Size/Visual Area Equivalent to frame size
- Material Type 100% Flame-retardant polyester
- Print Process Digital dye-sublimation
- Installation Silicone beading (stitched edge)
- Flexible PVC 0.55″ x 0.098″ (14mm x 2.5mm)
- Diffuser Not needed
- Graphic #2 If only single sided illumination
- White
- Non-lit print available
Lighting
- Light Source Perimeter Power Lighting
- CREE LED
- Power Consumption 15W per module
- Life Expectancy 50,000+ hours
- Easy Replacement Can be installed on-site
- Standard Color Temperature (CCT) 6500K
- Available Color Temperatures (CCT)
- 4100K
- 5300K
- 6500K
- Operating Voltage 24Vdc
Power Supply
- Remote Class 2 Power Supply Handles up to 60W
- Input Voltage 100-240Vac, 50-60Hz
- Universal Power Supply Available upon request
- Daisy Chain Link multiple light boxes for easy, clean installation & minimal visible wiring using just one outlet
Powered by Perimeter Lighting technology, the Profile 200 Fabric Light Box is ideal for displaying large graphics, providing bright and even illumination. The Profile 200 Fabric Light Box is ideal for store window displays with its double-sided graphic display capability.

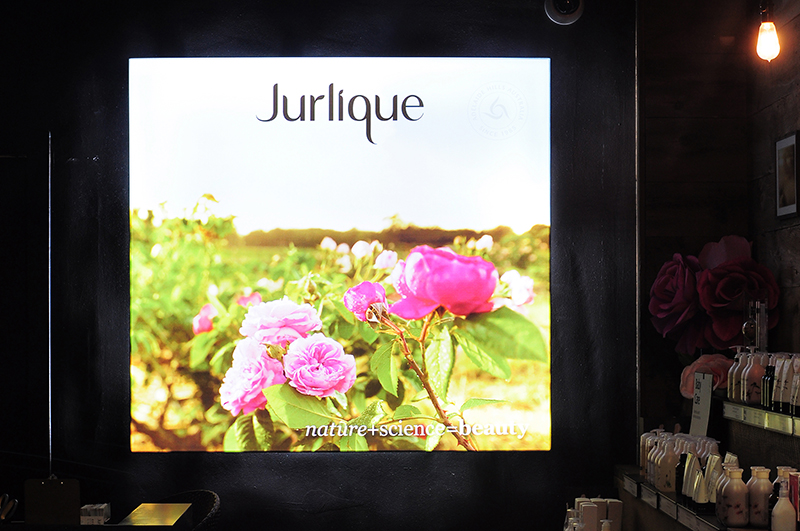

The Profile 200 Fabric Light Box is used primarily in retail environments, displaying promotions and branding efforts, as well as illuminating art work and graphics. To view some of our projects with the Profile 200 Light Box application, click here.
Product Features
Quick Graphics Changes
Power: 12V/24V
Slim Profile
80% Energy Efficient
Frameless Design
Plug & Play
Wall Mount – Seamless Application
Custom Sizes
Outstanding Brightness
Custom Frame Colors
Even Lighting – No Dark Spots
Pre-Assembled – Ships Ready To Use
Hanging
Free Standing
Certifications
