LUXCANVAS ™ SLENDER SERIES
LUXCANVAS ™ SLENDER SERIES
Refined Structure. Expanded Possibilities.
LUXCANVAS™ SLENDER Series introduces a refined 3.14″ low-profile structure, extending the LUXCANVAS system into a lighter and more versatile architectural solution.
Engineered with a redefined structural depth, SLENDER maintains the signature seamless, edgeless illumination of the LUXCANVAS platform while delivering a slimmer visual presence and enhanced integration within contemporary spaces. The streamlined profile allows the system to feel more proportionally balanced within ceilings and walls, supporting cleaner lines and modern architectural expressions.
With its optimized structure, SLENDER enables greater flexibility in custom forms and creative configurations, empowering designers to explore new geometries and spatial concepts with confidence.
Available in clean white, color changing, and color tuning options.
MECHANICAL
Material
- Frame Material Anodized aluminum
- Textile Surface Material 100% Flame-retardant polyester
- Textile Installation Silicone beading
- Flexible Silicone Beading Silicone
- Backboard Aluminum
Warranty/Certifications
- Compliance UL Listed
- Warranty 5-years
DIMENSIONS
- Seamless Textile Dimensions ≥ 18″ x 18″ (457mm x 457mm) Max. ≤ 120″ (3048mm width x customizable length)
- Minimum Radius (For Shapes): 7.87″ (0.2m)
- Fabric Size Equivalent to exterior frame
- Profile Height (Frame) 3.15″ (80mm)
- Orientation Portrait or Landscape
- Flexible Silicone Beading 55″ x 0.098″ (14mm x 2.5mm)
FINISH
- Standard Frame Color Silver anodized aluminum
- Custom Frame Color Powder coated available upon request. Specify RAL# for availability.
- Print Process White fabric (unprinted)
- Digital dye-sublimation (printed) or UV Printing
ELECTRICAL

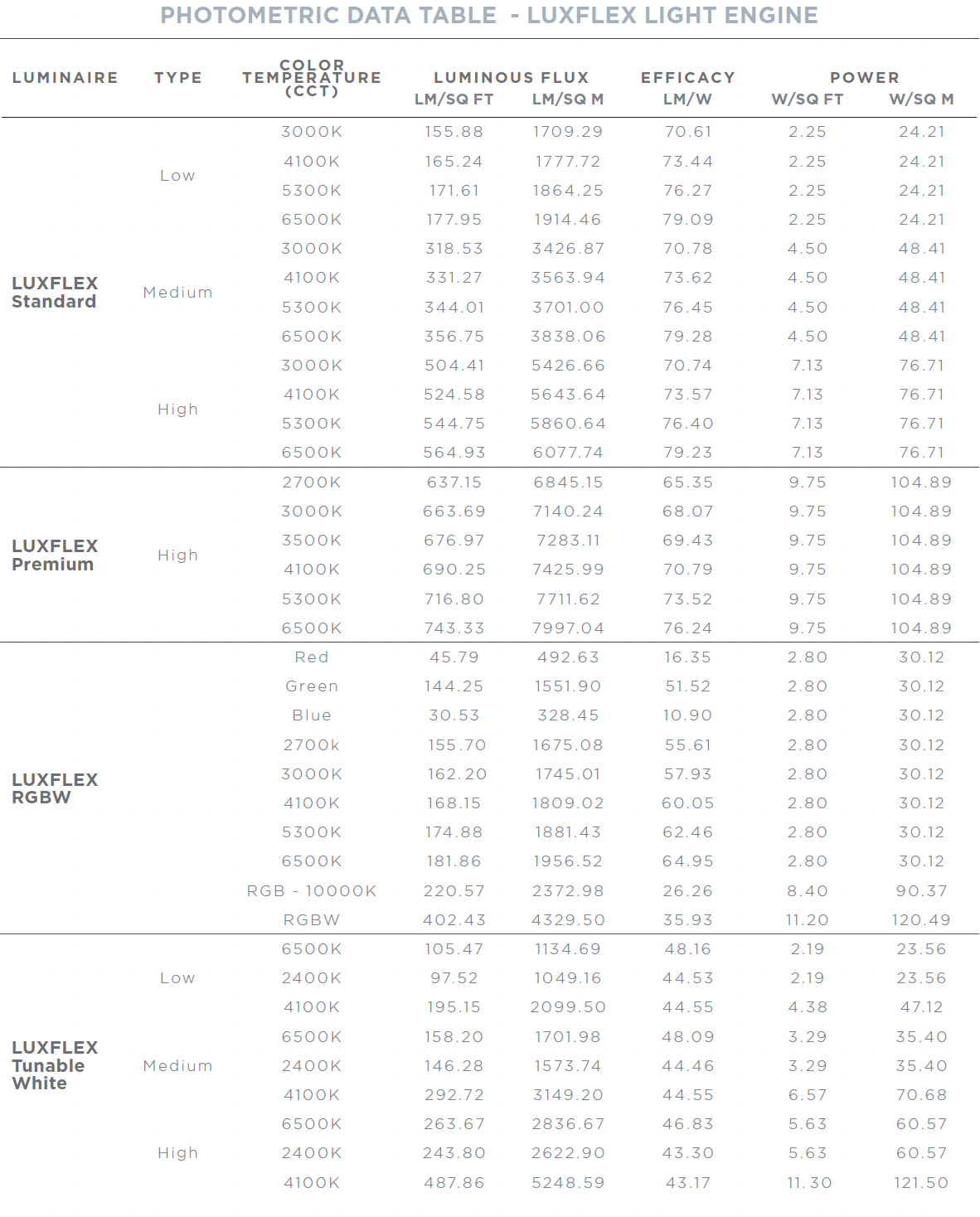

PHOTOMETRICS
- Distribution Lambertian
- Standard Color Temperatures 3000K • 4100K • 5300K • 6500K
- Custom Color Temperatures Inquire for more information; custom requests may extend production lead time.
- Color Rendering Index (CRI) ≤ 90
- Color Options White (LUXMESH & LUXFLEX) • RGB / RGBW /
- Tunable (LUXFLEX)
- Color Uniformity 3SDCM
- Maintenance Factor L70 50,000+ hours
POWER SUPPLY
- Remote Class 2 Power Supply Up to 96W
- Input Voltage 24VDC; 100-277VAC, 50-60Hz
- Universal Power Supply Available upon request
- Power Supply Location By default, power supplies will be generally installed inside of the light box with exception to curved light box applications. Oversize power supplies and controls such as magnetic low voltage, power supplies manufactured by suppliers other than LEDCONN, and rgb/rgbw/tunable white controls will be mounted remotely.
DIMMING OPTIONS (STATIC WHITE CCTS)
- Pulse-width modulation (PWM)
- 0-10V dimming
- Magnetic low-voltage (MLV)
COMPATIBLE CONTROL (RGB/RGBW/TUNABLE WHITE ONLY)
- DMX control
- Pulse-width modultation (PWM)
- RGB/ RGBW/ Tunable Controller (please check feasibility)
APPLICATIONS
- Luminous Ceilings & Walls
- Retail Environments
- Airports
- Museums
- Showrooms (such as automobile showrooms)
- Corporate Offices
- Trade Show Exhibitions
MOUNTING TYPES
- Wall Mount
- Hanging (eyehooks or aviation cable)
- Surface Mounting
- Recessed
INSTALLATION
- Environment Indoor, dry location only
- Operating Temperature LUXCANVAS™ LED luminous textile boxes shall operate at a temperature range of 32˚F min to +104˚F max (0˚C min to +40˚C max).
- Ambient Temperature LUXCANVAS™ shall be maintained at an ambient temperature range of -40˚F min to +185˚F max (-40˚C min to 85˚C max).
- Mounting LUXCANVAS™ may be surface mounted, recessed, or suspended. Ceiling applications may be achieved with any of these mounting styles. Wall applications are typically achieved with surface or recessed mounting only.
- Multi-Paneling For installations exceeding 10′ in length on more than one side, LUXCANVAS™ may need to be shipped knocked-down in a multi-paneled format due to shipping limitations, and assembly on site may be needed.
*See installation guide for full details and recommendations
Product Features
Frameless Design
Compact Profile
Illuminated Ceilings
Customize
Even Lighting – No Dark Spots
Illuminated Walls
Product Features
Strong Color Rendering
Wide Beam Angle
Outstanding Brightness
80% Energy Efficient
Even Lighting
Custom Roll Lengths
Long LED Lifespan
Custom Colors
Constant Voltage – 24V
Contours For Simple Curves

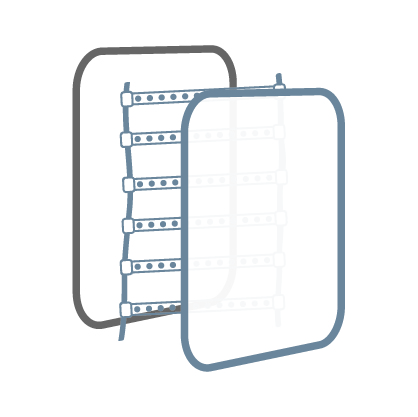

Effective Backlighting Solution

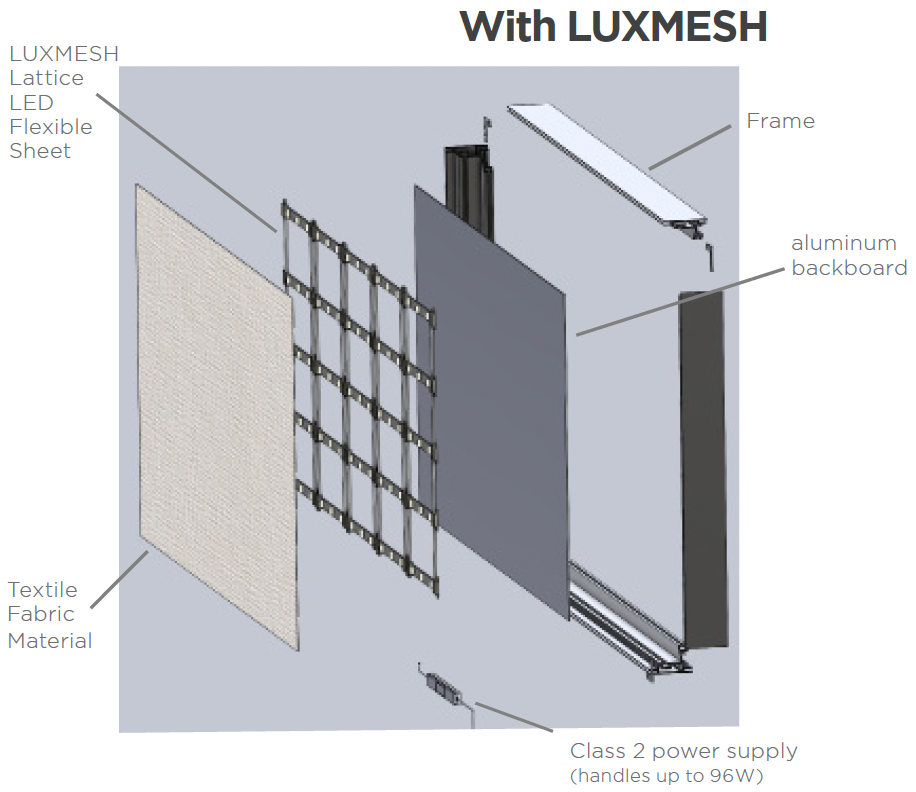

Product Exploded View 1
Product Exploded View 2
Certifications:
Applications:
- Sign Cabinet Backlighting
- Fabric Light Box Backlighting
- Ceiling & Wall Backlighting
- Large Format Illumination
- Simple Curved Applications
- …And Many More!
