LUXLINEAR™ ROUND 2019
LUXLINEAR™ ROUND 2019
Indoor/Dry Location Series
BROAD ILLUMINATION
Despite its slim design, our LUXLINEAR™ Round Profile 2019 LED light tubes are capable of providing the broadest angle of light in contrast to its sister profile extrusions. Featuring the slim, sleek look found throughout the LUXLINEAR™ product line, the round profile’s distinct advantage is its round lens, which allows for a seamless beam of light that provides broader focused lighting. Like all LUXLINEAR™ products, this profile is also compatible with many LUXLINE™ LED Light Strips.
DOWNLOAD
SPECIFICATION
LUMEN DATA
APPLICATIONS
DIMENSIONS
COMPATIBILITY
DOWNLOAD
SPECIFICATION
MECHANICAL
Construction & Base Material
- Extrusion Material Anodized aluminum
- Extrusion Max. Run 6.5ft (2m) per individual extrusion. For applications longer than 6.5 ft, multiple individual extrusions can be mounted side by side without affecting lighting performance.
- Mounting Clip Material Steel
- End Cap Material Polypropylene
- Diffuser Lens Material Polypropylene
Compliance & Regulatory Approval
- UL E477011 · RoHs · CE · Warranty 5 years
Tube Options
- Diffuser Lens Frosted · Clear · No lens
Finishes
- Aluminum Finish Clear anodized aluminum
- Available Powdercoat Finish Gloss · Matte · Textured · Metallic
ELECTRICAL
Max. Load & Max LED Strip Width
- Max. Load Depends on the type of LUXLINE™ or equivalent LED strip is used to power the LUXLINEAR™ LED Tube extrusion. Please reach out to a Sales Team Member for more information about Max Load & Power Capacity for our various LUXLINE™ LED Strips.
- Max. LED Strip Width This profile will only accommodate strips up to and less than 0.64” (16.2mm) wide.
SAFETY
- Electric Code Compliance Please make sure to install LUXLINEAR in accordance with standard national and local electrical codes.
- Outdoor Usage LUXLINEAR is meant to be used for indoor dry location applications only.
LUMEN DATA
APPLICATIONS
Installation
- Field Cuttable LUXLINEAR™ is fully field cuttable and may be cut at any point along the extrusion or LED strip.
- Environment Indoor/dry location only.
- Indoor Damp Location Safe Only with appropriate IP rating and proper damp location treatment to the LUXLINE™ LED strip contained within the assembled extrusion.

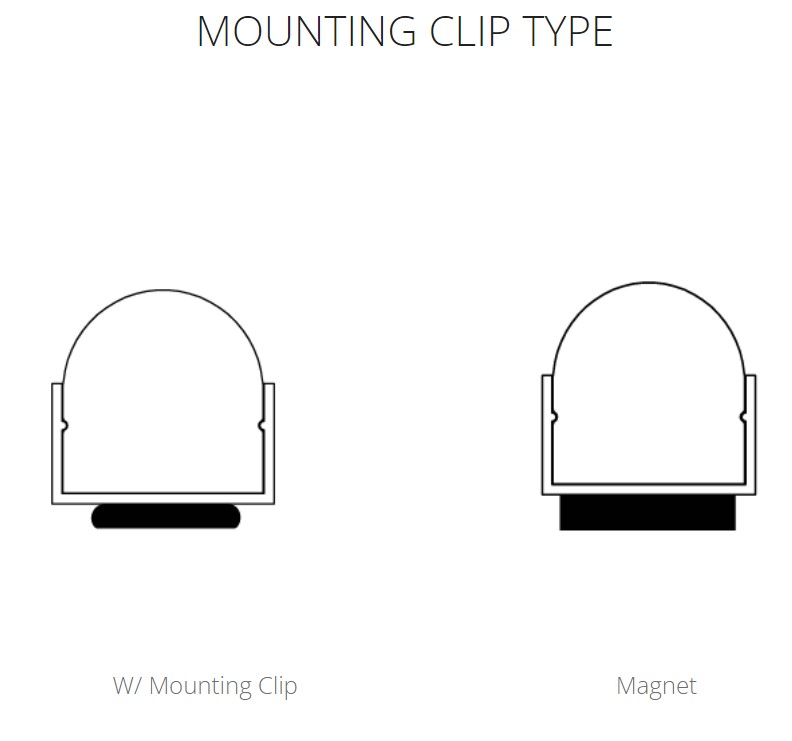

- Mounting Extrusion may be mounted with 3M adhesives or by drilling with provided mounting clips.

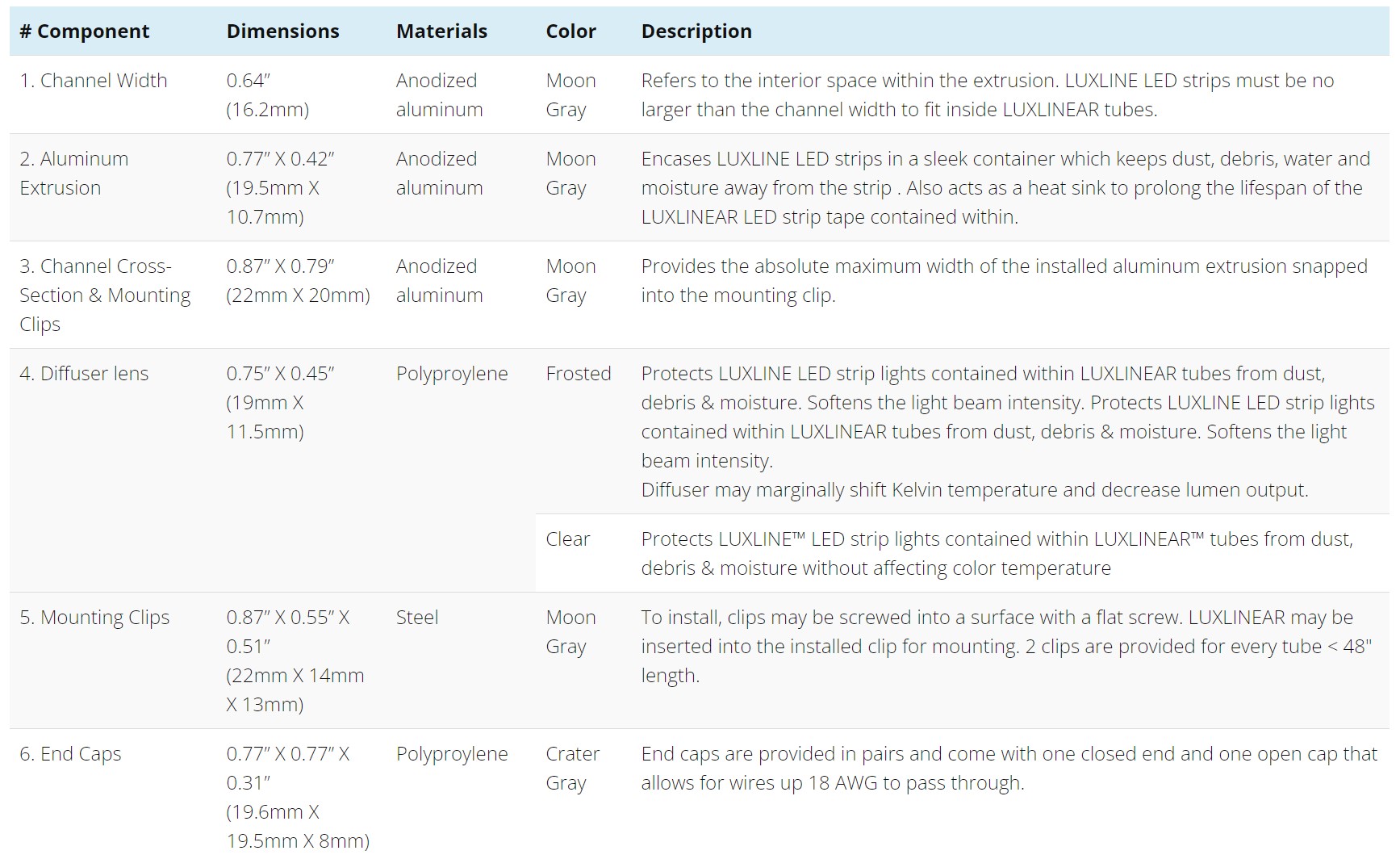

DIMENSIONS
COMPATIBILITY
Customize Your Fit
LUXLINE™ LED Strips are compatible with many LUXLINEAR™ LED Tube profile extrusions. Take a look below to see which strips fit this particular strip profile.
Product Features
Powered by LUXLINE LED Strip
Slim Width
Comes with 2 mounting clips
Protects against dust & debris
Custom Lengths
Ships Fully Assembled
Certifications
