LUXMESH™ LED LATTICE

Home PRODUCTS LUXMESH™ LED LATTICE

LUXMESH™

Discover a versatile grand format backlighting solution that combines brilliant, innovative illumination with an energy-efficient design when you use LUXMESH LED Lattice to backlight large format graphics, such as those printed on our Profile 100 and 120 series Fabric Light Boxes.

Download Spec

Product Features

  • null

    Strong Color Rendering

  • null

    Outstanding Brightness

  • null

    Even Lighting

  • null

    Long LED Lifespan

  • null

    Contours For Simple Curves

  • null

    Effective Backlighting Solution

  • null

    Wide Beam Angle

  • null

    80% Energy Efficient

  • null

    Custom Roll Lengths

  • null

    Custom Colors

  • null

    Constant Voltage – 24V

Application:

  • Sign Cabinet Backlighting
  • Fabric Light Box Backlighting
  • Ceiling & Wall Backlighting
  • Large Format Illumination
  • Simple Curved Applications
  • …And Many More!

Certifications:

CUL Listed

100% QC

Manufacturer’s Warranty

RoHS

CE

DOWNLOADS
TECHNOLOGY
SPECIFICATION
APPLICATIONS
DOWNLOADS

LUXMESH™ Specification Sheet

PDF_iconStatic White Drivers& Controls Specification Sheet

PDF File vector icon

LUXMESH™ Installation Guide

download-file-icons-vector-ies

LUXMESH™ Short 4100K IES File

download-file-icons-vector-ies

LUXMESH™ Medium 4100K IES File

download-file-icons-vector-ies

LUXMESH™ Long 4100K IES File

PDF_iconLedconn Catalog

TECHNOLOGY
Optimal Ra 80+
Even Lighting
Wide Beam Angle

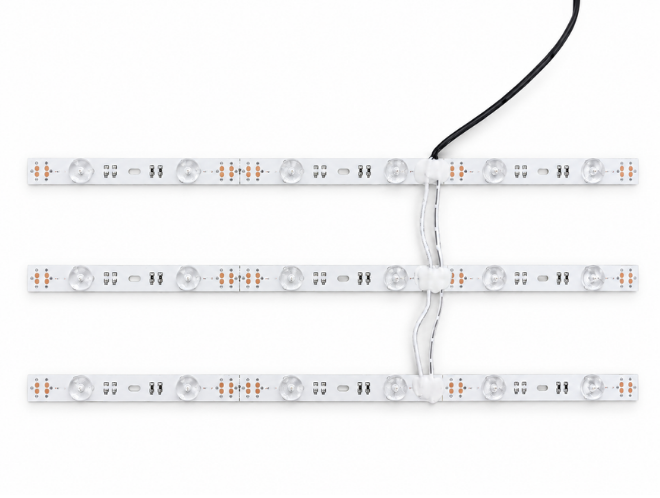

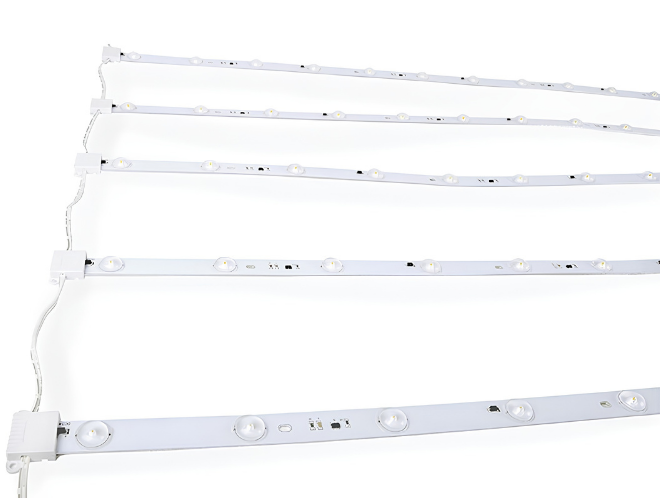

LUXMESH™ is a grand format lighting solution with an unlimited max roll length and a strong color rendering index rated at 80+. With outstanding even lighting distribution, LUXMESH™ will provide a clean and consistent look to any backlighting application. Featuring a wide beam angle, energy-saving design and consistent lighting output, LUXMESH™ is the designer’s choice for optimized backlighting solutions. Fully adjustable to meet your application’s unique needs, mix and match the standard module sticks and combine them to the length you need for a custom fit that will provide full coverage without hot spots. Options to mount on the ceiling or wall provide unlimited design possibilities. The practical and creative applications with LUXMESH™ are truly limitless.
SPECIFICATION

Product Specification

Safety Standard

CUL Listed

LED Module

  • LEDs per piece 3, 6, & 12 pc/stick
  • LED Node Size 3030
  • PCB 3/16″ (w) x 9/32″ (h) [20mm (w) x 7mm (h)]
  • LED Pitch 3-5/32″ (80mm)
  • Stick-to-Stick Pitch 6″ (152mm)
  • No. of Sticks per Roll  10 Sticks
  • Max. Roll Length Unlimited
  • Ambient Temperature -4°F -+176°F (-20-+80°C)
  • IP Rating IP60*
  • Environment Indoor applications

*EXTERIOR applications (IP 65) available upon request

Mounting

  • Method
    •  Screws or
    • Double-sided foam tape
  • Optimal Cabinet Depth** 3″-5″ (76mm-127mm)

**Optimal depth to prevent hot spots

Light Source

  • LED Chip Nichia 3030 LED
  • Wide Beam Angle 160° with Optical Lens
  • Life Expectancy  50,000+ hours
  • Color Rendering CRI 80+
  • Standard Color Cool White (6500K)
  • Available Colors
    • Neutral White (4100K)
    • Daylight (5300K)
  • Dimmable Compatible with pulse-width modulation dimming (PWM) & 0-10V dimming
  • UL Listed E477011

Power Supply

  • Input Voltage 24 Vdc constant current
  • Wire Size 20 AWG 2 Wire
  • Please use only with Class 2 power supply
  • Connector Type
    • Molex
    • Hardwire
APPLICATIONS
Simple Curves
Backlighting Solution
Long LED Lifespan
LUXMESH™ is LEDCONN’s new lattice lighting system made specifically for grand format backlighting applications. This product can also accommodate simple curves for unique shapes and designs. LEDCONN’s LUXMESH™ product is the perfect lighting solution for every designer’s toolbox. LUXMESH™ is an energy-efficient, long-lasting lighting solution with an LED lifespan of 50,000+ hours of dependable performance.

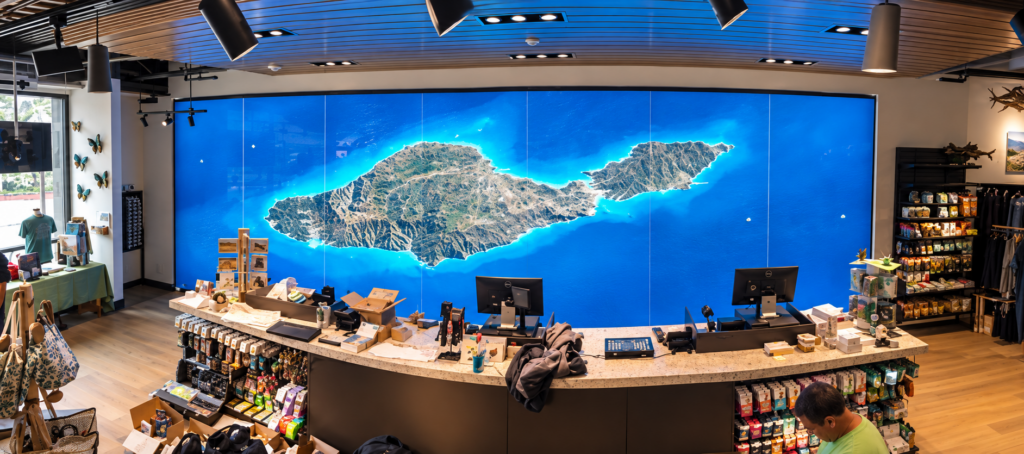

LUXMESH’s large format illumination capabilities are ideal for fabric light boxes, sign cabinet backlighting, ceiling and wall backlighting, and many more.
