LUXNEON™ RGB NEON TUBE LIGHT
Colorful Accent Lighting
SIDE BEND
LUXNEON RGB LED NEON FLEX TUBE
Designed for today’s modern architectural and signage applications, LUXNEON™ LED RGB Flexible Side Bending Neon Tube Lighting is a bendable, flexible, cuttable solution that can contour to your curved architectural spaces and applications. Simply plug it in and watch the lighting magic happen right before your eyes. With LUXNEON™ RGB, introduce dazzling color changes to your cove and embedded architectural lighting applications. This lighting solution is sure to create drama and enliven your space!
Create a colorful, continuous line of light for curved spaces with LUXNEON™ RGB!
DOWNLOAD
SPECIFICATION
PHOTOMETRICS
INSTALLATION
APPLICATIONS
DOWNLOAD
SPECIFICATION
MECHANICAL
Parameters
- LED Count 36 pc/ft (118 pc/m)
- LED Roll Length 32 ft 13/16″ (10m) or built to order
- Tube Dimensions Tube cross-section: 0.67″ (17mm) x 0.39″ (10mm) · Tube w/end cap: 0.75″ (19mm) x 0.47″ (12mm)
- Flat Bend 1.18″ (30 mm)
- Bend Type Lateral flat bend
- Cutting Length 2.28″ (58 mm)
Construction & Base Material
- Tube Material Silicon
- Tube Max. Run Length may be customized for your order
- PCB Material Flexible PVC with SMD LEDs
- End Cap Material Silicon
- Diffuser Material Silicon
- Substrate Material Silicon
- Mounting Clip Material Aluminum
- Mounting Channel Material Aluminum
- Flammability Rated UL94 V-2 flame retardant
Compliance & Regulatory Approval
UL E477011 · cUL E477011 · RoHs · CE · Lead Free · Warranty 5 years
Colors
- Diffuser Milky white silicone
- Standard White Silicone Tubing Stardust gray
ELECTRICAL
Parameters
- Wide Beam Angle 120°
- Lamp Life 60,000+ hours
- Standard Single Color Temperatures Red (617nm) · Green (515nm) · Blue (462nm)
- Lumen Output Red 17.9 lm/ft (58.8 lm/m) · Green 35.3 lm/ft (115.9 lm/m) · Blue 6.9 lm/ft (22.5 lm/m) · RGB 60.1 lm/ft (197.2 lm/m)
Dimming
- Pulse-width modulation dimming (PWM)
- DMX/DALI
- Radio Frequency (RF) Remote Control
Power Supply
- Input Voltage 24VDC constant voltage
- Input Current 0.22 A/ft (0.72 A/m)
- Power Consumption 5.3 W/ft (17.3 W/m)
- Wire Size 20 AWG 2 Wire
- Please Use Only with Class 2 Power Supply
- Max. No. of Wire Connections 2
- Connector Type Hardwire
PHOTOMETRICS
INSTALLATION
INSTALLATION
- Field Cuttable LUXNEON™ is fully field cuttable every 2.28″ (58mm).
- Field Bendable LUXNEON™ is field bendable and may be flexed or curved for your retail or architectural environment. It is designed for lateral side (left to right) bending only.
- Environment Indoor and outdoor location safe. For wet location installations, please make sure to seal the entry points completely with silicon to prevent water from entering the product.
- IP67 Waterproof
- Operating Temperature -13˚F ~ +140˚F (-25˚C ~ +60˚C)
- AmbientTemperature -13˚F ~ +158˚F (-25˚C ~ +70˚C)
- Heat Sink Not required for installation.
- Mounting May be mounted with mounting clips or with a mounting channel.
- Connecting Multiple Tubes LUXNEON™ RGB may be purchased custom cut to your desired length or cut into smaller segments and connected with an interconnection connector to chain the tubes together.
SAFETY
- Electric Code Compliance Please make sure to install LUXNEON™ in accordance with standard national and local electrical codes.

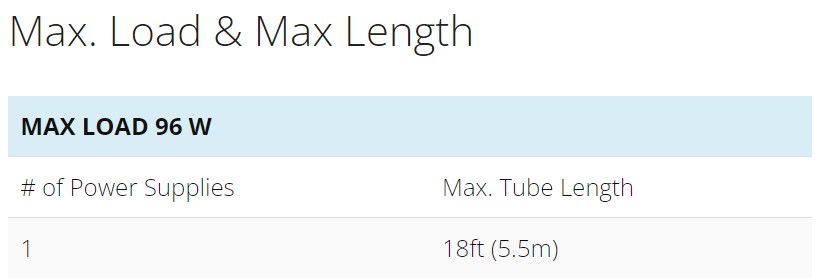

- Class 2 Compliance When cutting your LUXNEON™ tube, keep in mind that Class 2 compliance restricts the max load of the product to 96W.
APPLICATIONS
APPLICATIONS
- Outdoor/Indoor Decorative Lighting
- Cove Lighting
- Awning Lighting
- Wall Wash Lighting
- Architectural Lighting
- Curved Embedded Lighting
- Decorative Linear Lighting
- Channel Letters
- Signage
- Border Tubing
- Accent Lighting
- Compact, Space-Sensitive Applications
- Retail Applications
Product Features
Bend & Flex Sideways
UV Safe
RGB Color
Easy to Install
Wide Beam Angle – 120°
Plug & Play
V-2 Flame Retardant (UL94)
Long LED Lifespan – LM-80
Field Cuttable for Custom Lengths
IP67 Dust & Temporary Immersion safe
Dot-Free Neon-Like Illumination
