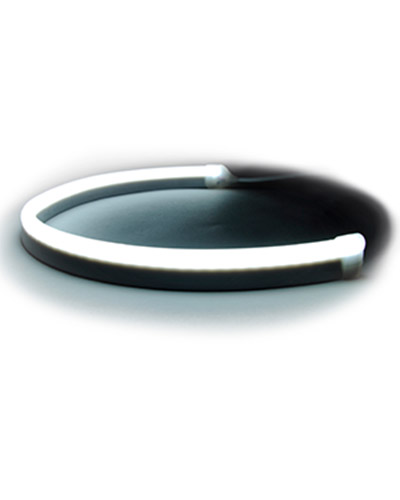

LUXNEON™ CLASSIC LED TUBE LIGHT
Curvable Hotspot-Free Neon-Like Illumination
SIDE BEND
LUXNEON CLASSIC LED NEON FLEX TUBE
Say goodbye to yesterday’s old school neon lighting technologies and say hello to LUXNEON™ LED Flexible Neon Tube Lighting, designed for today’s modern architectural and signage applications. Although LUXNEON™ provides a visual effect similar to traditional neon, it is so much safer and easier to install. With LUXNEON™ you can bend, flex, cut, and contour these beautiful tubes for your desired architectural application. Simply plug it in and watch the lighting magic happen right before your eyes. Available in a myriad of colors for cove and embedded architectural lighting applications.
DOWNLOAD
SPECIFICATION
PHOTOMETRICS
INSTALLATION
ACCESSORIES
APPLICATIONS
DOWNLOAD
SPECIFICATION
MECHANICAL
Parameters
- LED Count 33 pc/ft (112 pc/m)
- LED Roll Length 13 ft 1-7/16″ (4m) or built to order
- Tube Dimensions Tube cross-section: 0.96″ (24.4mm) x 0.47″ (11.9mm) · Tube w/end cap: 1.05″ (26.6mm) x 0.56″ (14.1mm)
- Flat Bend 1″ (25 mm)
- Cutting Length 2″ (51 mm)
Construction & Base Material
- Tube Material Silicone
- Tube Max. Run Length may be customized for your order
- PCB Material Flexible PVC with SMD LEDs
- End Cap Material Silicone
- Diffuser Material Silicone
- Substrate Material Silicone
- Mounting Clip Material Aluminum
- Mounting Channel Material Aluminum
- Flammability Rated UL94 V-2 flame retardant
Compliance & Regulatory Approval
UL E477011 · cUL E477011 · RoHs · CE · Lead Free · Warranty 5 years
Colors
- Diffuser Milky white silicone
- Standard White Silicone Tubing Stardust gray (white color temperatures only)
- Colored Silicone Tubing (For single colored lights only.) · Red · Yellow · Green · Blue · Tubing color matches LED light color.
ELECTRICAL
Parameters
- Wide Beam Angle 150°
- Lamp Life 60,000+ hours
- Standard Color Temperatures 3000K · 4100K · 5300K · 6500K
- Standard Single Color Temperatures Red (625nm) · Yellow (588nm) · Green (525nm) · Blue (465nm)
- Custom Color Temperatures Available Please inquire for more information
- Lumen Output See Photometric Data Table
Dimming
- Pulse-width modulation dimming (PWM)
- 0-10V dimming
- Magnetic low voltage (MLV)
Power Supply
- Input Voltage 24VDC constant voltage
- Input Current 120mA/ft (396mA/m)
- Power Consumption 2.10 W/ft (6.90 W/m)
- Wire Size 20 AWG 2 Wire
- Please Use Only with Class 2 Power Supply
- Max. No. of Wire Connections 2
- Connector Type Molex® · DC Barrel Jack · Hardwire

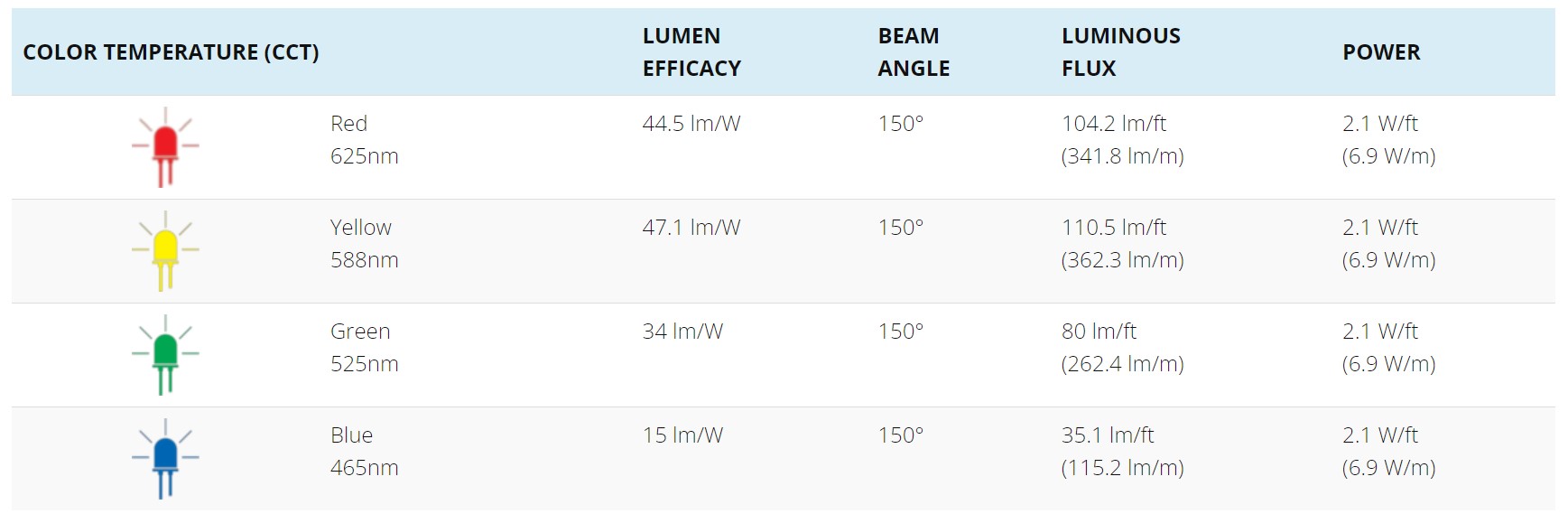

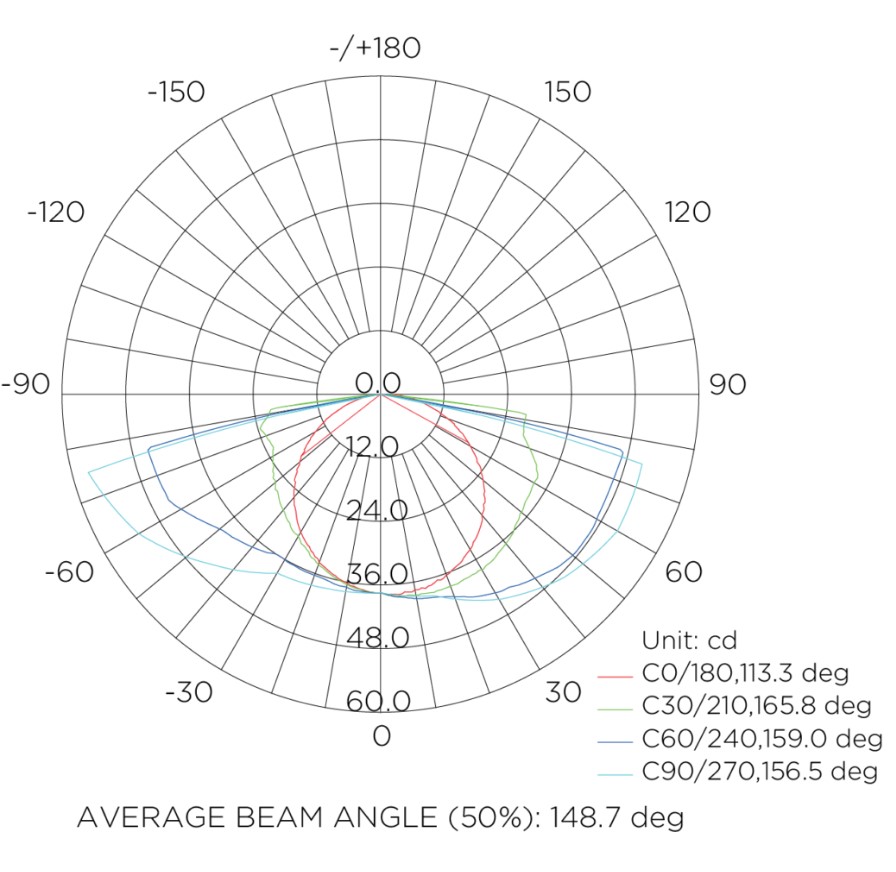

PHOTOMETRICS
INSTALLATION
INSTALLATION
- Field Cuttable LUXNEON™ is fully field cuttable every 2″ (51mm).

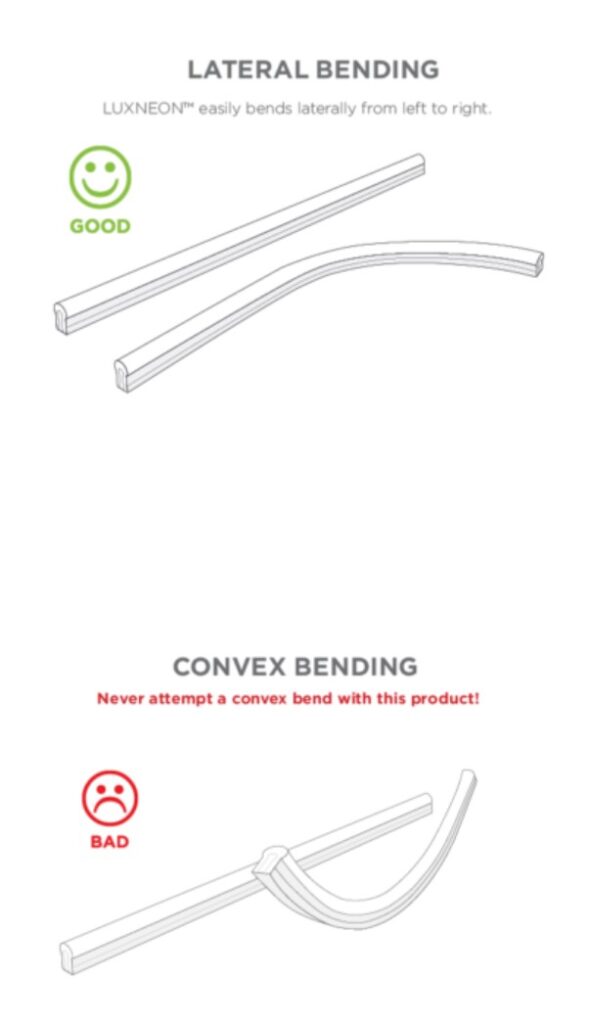

- Field Bendable LUXNEON™ is field bendable and may be flexed or curved for your retail or architectural environment. It is designed for lateral side (left to right) bending only.
- Environment Indoor and outdoor location safe. For wet location installations, please make sure to seal the entry points completely with silicon to prevent water from entering the product.
- IP67 Waterproof
- Operating Temperature -13˚F ~ +140˚F (-25˚C ~ +60˚C)
- Heat Sink Not required for installation.
- Mounting May be mounted with mounting clips or with a mounting channel.
- Connecting Multiple Tubes LUXNEON™ may be purchased custom cut to your desired length or cut into smaller segments and connected with an interconnection connector to chain the tubes together.
SAFETY
- Electric Code Compliance Please make sure to install LUXNEON™ in accordance with standard national and local electrical codes.

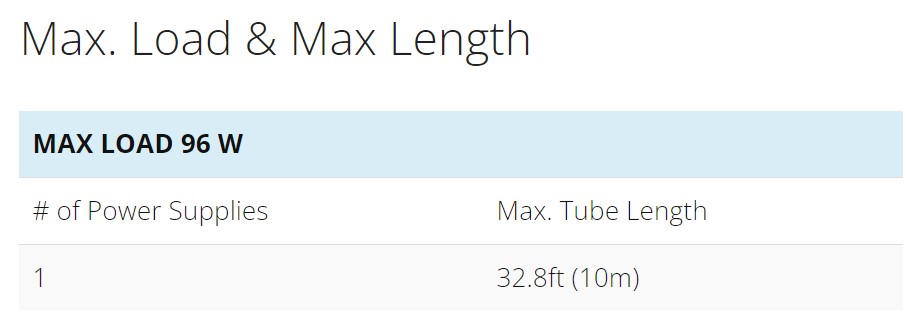

- Class 2 Compliance When cutting your LUXNEON™ tube, keep in mind that Class 2 compliance restricts the max load of the product to 96W.

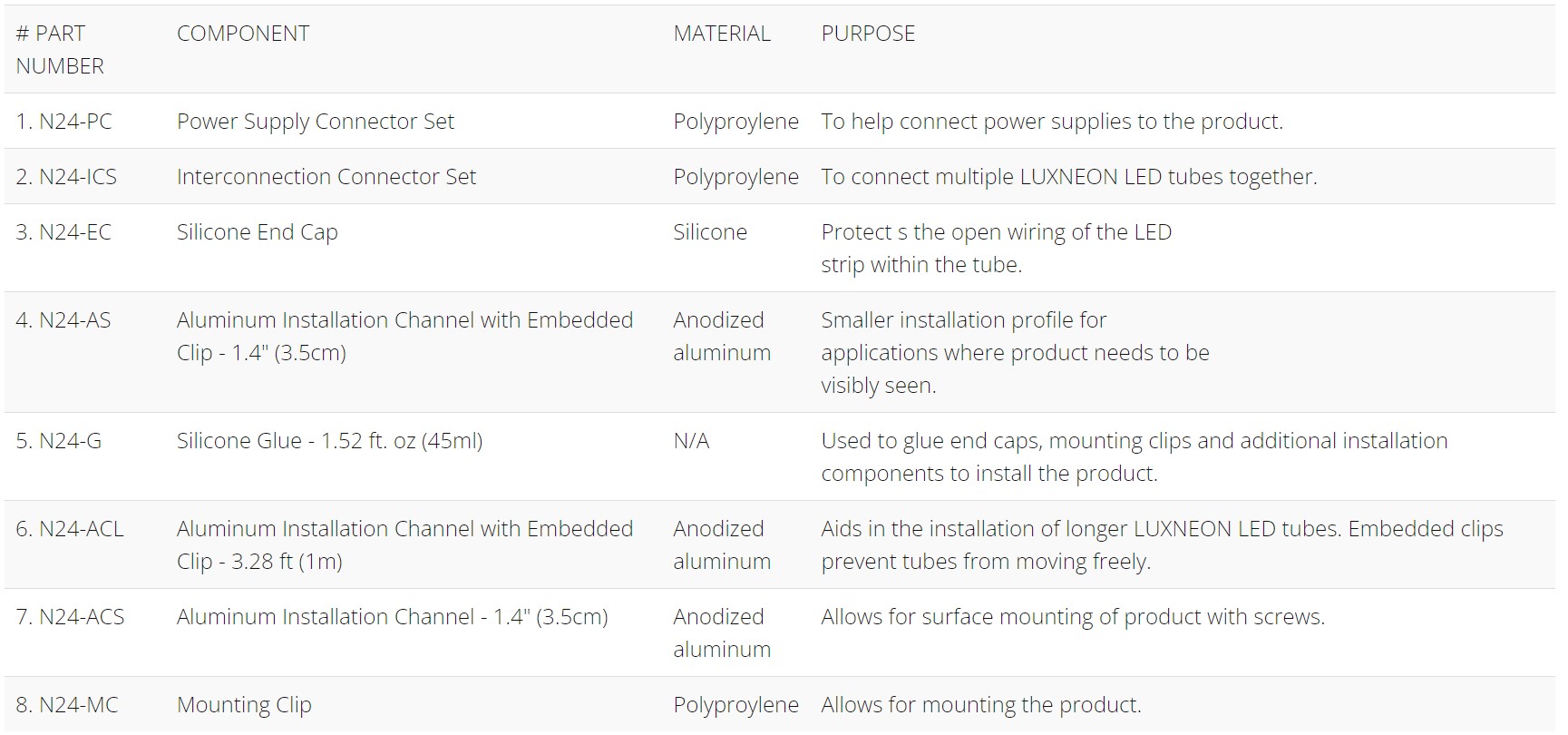

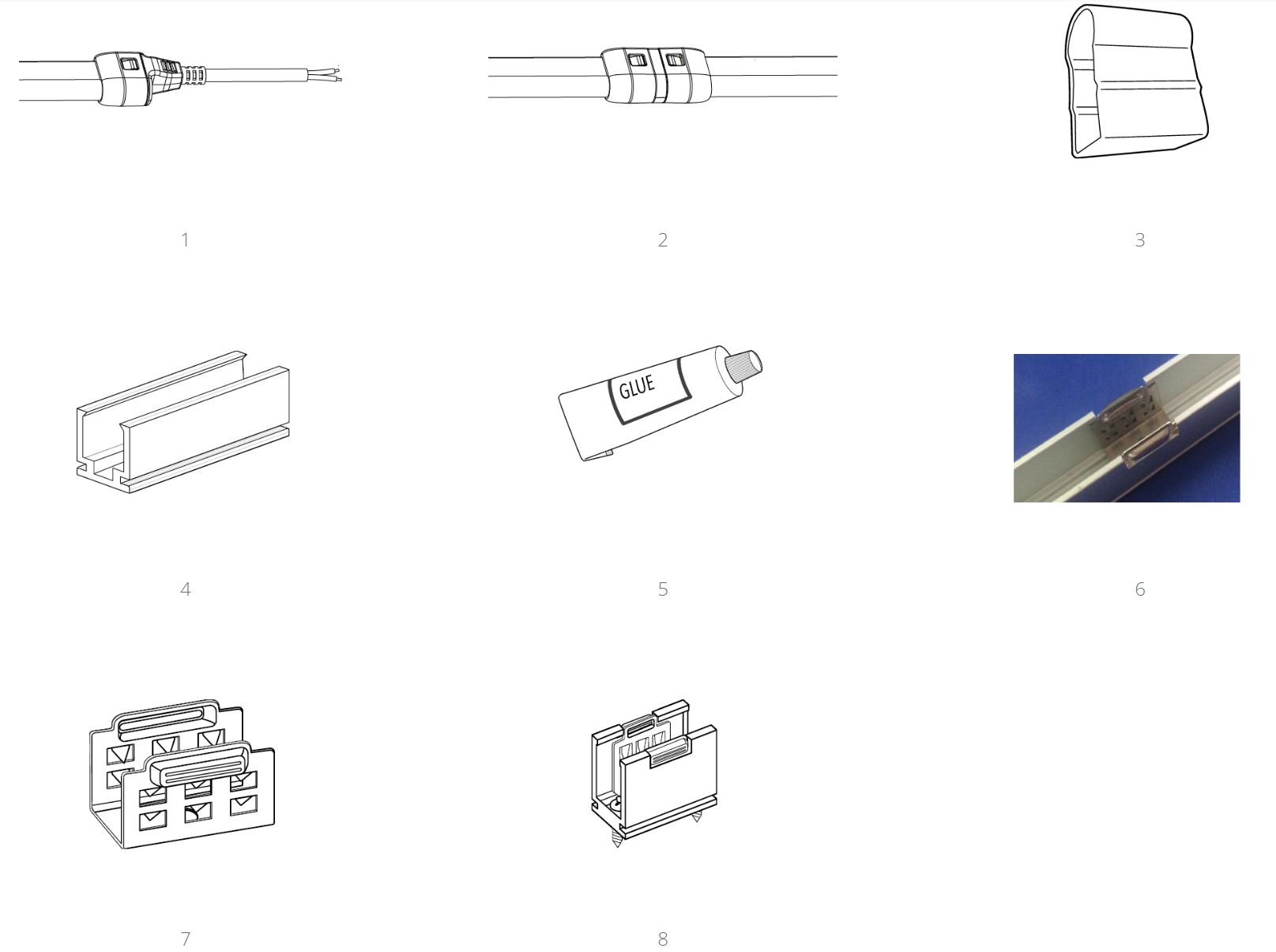

ACCESSORIES
APPLICATIONS
APPLICATIONS
- Outdoor/Indoor Decorative Lighting
- Cove Lighting
- Awning Lighting
- Wall Wash Lighting
- Architectural Lighting
- Curved Embedded Lighting
- Decorative Linear Lighting
- Channel Letters
- Signage
- Border Tubing
- Accent Lighting
- Compact, Space-Sensitive Applications
- Retail Applications
Product Features
Bend & Flex Sideways
UV Safe
IP67 Dust & Temporary Immersion safe
Easy to Install
Wide Beam Angle
Plug & Play
V-2 Flame Retardant (UL94)
Long LED Lifespan
Field Cuttable for Custom Lengths
Custom Color Temps
Dot-Free Neon-Like Illumination
Outstanding Brightness
