LUXFLEX™ FLEXIBLE LED SHEET - PREMIUM
LUXFLEX™ FLEXIBLE LED SHEET - PREMIUM
THIN & FLEXIBLE BACKLIGHTING
Indoor/Outdoor Location Series
LUXFLEXTM Premium LED Flexible Sheets are great for indoor and outdoor backlighting projects where a lighting solution that is both thin and bendable may be needed to fit into soft, curving surfaces and spaces. The Premium series is waterproof for outdoor applications requiring the IP65 rating.
Illuminate space-efficient and creative lighting designs such as curves.
DOWNLOAD
SPECIFICATION
LUMEN DATA
APPLICATIONS
DOWNLOAD
SPECIFICATION
MECHANICAL
Parameters
- LED Type EPISTAR 2835 LED
- LED Count 288 LEDs per sheet (8 LEDs per 2″x4″ piece)
- LED Sheet Dimensions 12″ (w) x 24″ (h) [609.6mm (w) x 304.8mm (h)]. Full sheets and cut pieces may be limitlessly tiled together for maximum backlighting coverage.
- LED Pitch 1″ (25.5mm)
- LED Sheet Thickness
- Sheet only: 0.02″ (0.51mm)
- LED height: 0.04″ (1mm)
- Connector height: 0.31″ (8mm)
- LED Node Size 2835
- Sheet Weight 6.4oz (0.18kg)
Construction & Base Material
- Substrate Material Flexible PET
- Flammability Rated UL 94 V-0
- Metal Material Rolled copper for PCB flexibility
Compliance & Regulatory Approval
- UL E477011 · cUL E477011 · RoHs · CE · Lead Free ·
- Warranty 5 years
ELECTRICAL
Photometrics
- Wide Beam Angle 120°
- Lamp Life 54,000+ hours
- Color Rendering Index (CRI/Ra) 80+ across all color temperatures · 90+ available upon request.
- Standard Colors 3000K · 4100K · 5300K · 6500K
- Custom Color Temperatures Available Please inquire for more information.
- Lumen Output 2650 – 3420 lumens per sheet. Features extremely high brightness with unmatched superior light consistency and quality.
Dimming
- Pulse-width modulation dimming (PWM)
- 0-10V dimming
- Magnetic low voltage (MLV)
Power Supply
- Input Voltage 24VDC constant voltage
- Input Current 0.54 A/ft²
- Power Consumption 12.96 W/ft² (25.92 W/sheet)
- Wire Size 20 AWG 2 Wire
- Please use only with Class 2 power supply
- No. of Standard Connectors 8
- Connector Type Molex®
1 input current for a single LED: 30mA

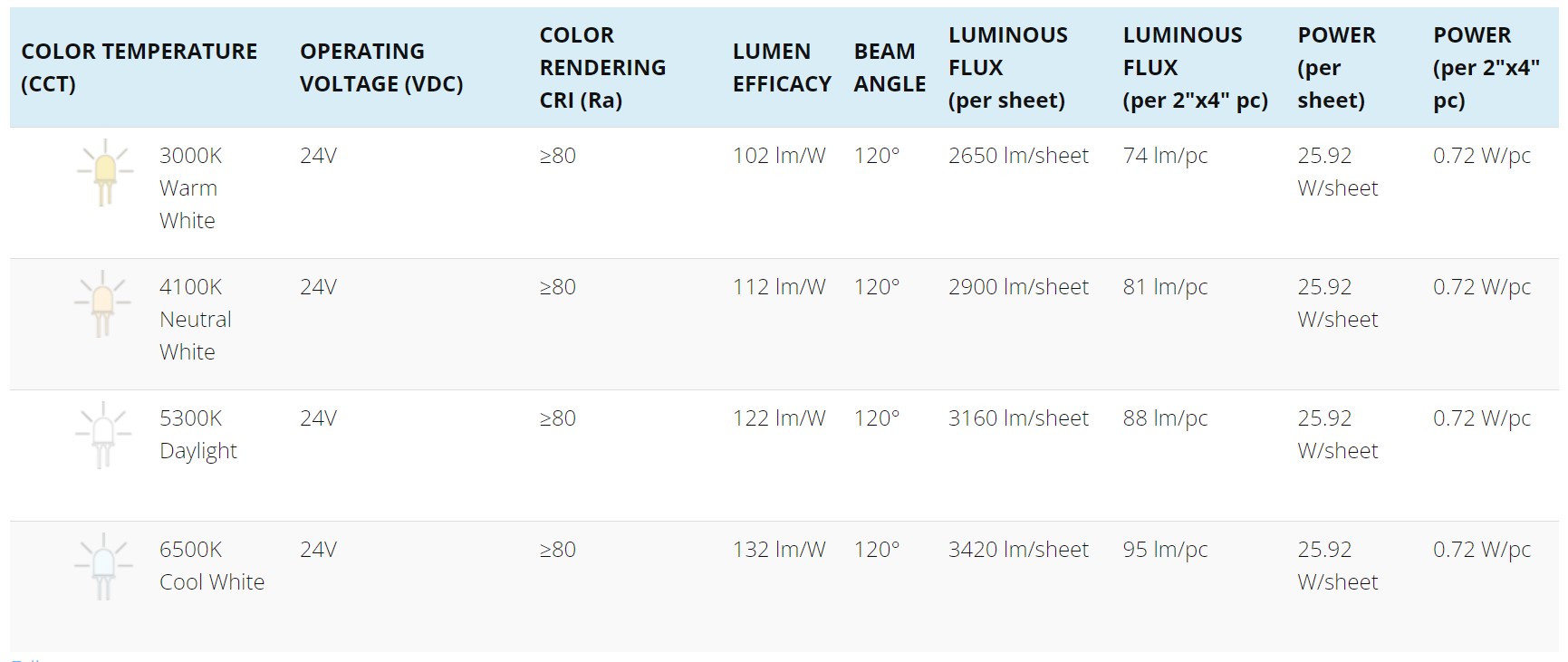

LUMEN DATA
APPLICATIONS
APPLICATIONS
- Indoor & Outdoor Architectural Entrance Facade
- Luminous Ceilings and Walls
- Indoor & Outdoor Advertising Signage & Screens
- Backlighting
- Backlit Signage
- Architectural Lighting
- Curved Applications
- Compact, Space-Sensitive Applications
- Retail Applications
SAFETY
- Electric Code Compliance Please make sure to install LUXFLEX™ in accordance with standard national and local electrical codes.
- Electrical Connectors LUXFLEX™ allows for up to eight (8) connections per sheet.
INSTALLATION
- Field Cuttable Following the black cut lines on the sheet, the smallest piece that can be cut is 2″ x 4″ or 50.8mm x 101.6mm
- Environment Safe for indoor and outdoor applications.
- Operating Temperature -13˚F ~ +140˚F (-20˚C ~ +60˚C)
- Ambient Temperature -13˚F ~ +158˚F (-25˚C ~ +70˚C)
- IP65 Waterproof LUXFLEX™ fixtures are dust tight and protect against water contact caused by water jets at any angle.
- Mounting May be mounted with 3M adhesives or with standard screws. All LUXFLEX™sheets feature 3M adhesive on the reverse side of the sheet and 9 holes for mounting with screws.
- Heat Sink Not required for installation.
- Tiling Multiple Sheets To tile LUXFLEX™ identify the female Molex® connector and match the polarity of the connecting wire according to the polarity indicated next to the connector.
- Curved Applications LUXFLEX™ may be pressure flexed for curved or radius applications to best fit your environment.
Product Features
Strong Color Rendering
Cuttable
Outstanding Brightness
Even Illumination
Dimmable to 1%
Lightweight
IP65 Damp Rated
Custom Color Temps
Flexible PCB Board
Easy and Inexpensive to Ship
Tile Sheets for Greater Coverage
Easy Connectivity
Certifications
LUXFLEX-2.0-SYSTEM OVERVIEW
