Fabric Light Box (Profile 100)
Fabric Light Box (Profile 100)
Our Profile 100 Fabric Light Box is a sleek & versatile marketing solution that allows for mounting and hanging with the added benefit of a profile that is slimmer than its similar larger counterparts, such as Profile 120. Profile 100 is a great ADA-compliant solution for retail stores that require a slimmer profile for reasons pertaining to liability.
The Profile 100 Fabric Light Box provides two options of backlighting: LUXMESH LED Lattice Lighting Technology and LED Power Perimeter Lighting Technology. Integrating the technology of these lighting techniques with a frameless anodized aluminum frame allows for seamless application to virtually any environment. The 100mm thickness of the Profile 100 Fabric Light Box is ideal for illuminating and displaying graphics of all sizes, while still complying with the ADA requirements for retail store displays.

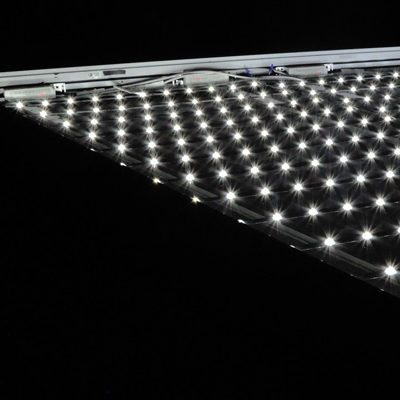

LUXMESH
The technology of LUXMESH LED Lattice Lighting Technology provides high quality LED lighting with the latest SMD technology. Lattice technology features low energy consumption and low heat generation, with a wide viewing angle of 120°. LED lattice lights are ideal to backlight large areas, creating a bright display with no hot spots.

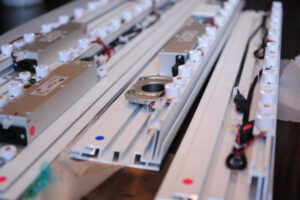

PERIMETER LIGHTING
LED Power Perimeter Lighting Technology functions well with energy-efficient LED modules that only require 15 Watts per LED module. These LED modules uniquely feature a life expectancy of over 50,000 hours for a lighting solution that will save the environment and your budget. Replacement of the modules is a simple and convenient task and can be easily done on the spot. All lighting components are UL approved.
Product Specification
Safety Standard
UL Listed Electric Sign (E340398)
Frame
- Depth 4″ (100mm)
- Frame Size
- Minimum Graphic Size 18″ x 18″ (457mm x 457mm)
- Maximum Graphic Size 120″ (3048mm) x any length
- Outside Dimensions Equivalent to graphic size
- Orientation
- Portrait
- Landscape
Finish
- Standard Silver anodized aluminum
- Custom Color Powder coated (available upon request)
Packaging
- Pre-Assembled Individually packed, depending on size
- Shipped Knocked Down (Disassembled) For large scale projects
Mounting Options
- Wall Mount With wall mount anchors
- Hanging With aviation cable or eyehooks
- Custom Mounting Hardware kits available for your desired application
Lighting Options
- Color-Changing RGB Provides unique colored effect
- Easy Dimming Provides control of the lighting intensity
Fabric
- Graphic Size/Visual Area Equivalent to frame size
- Material Type 100% Flame-retardant polyester
- Print Process Digital dye-sublimation
- Installation Silicone beading (stitched edge)
- Flexible PVC 0.55″ x 0.098″ (14mm x 2.5mm)
- Diffuser Available upon request
- Fabrics Backer Included for optimal light reflection
- White
- Solid colors available
Lighting
- Light Source LUXMESH™ LED Lattice Lighting
- Wide Beam Angle 120°
- 9-inch lattice: LTS 9 @ 3.7W/pc
- 19-inch lattice: LTS 19 @ 7.5W/pc
- 38-inch lattice: LTS 38 @ 15W/pc
- Light Source Perimeter Power Lighting
- CREE LED
- Power Consumption 15W per module
- Life Expectancy 50,000+ hours
- Easy Replacement Can be installed on-site
- Standard Color Temperature (CCT) 6500K
- Available Color Temperatures (CCT)
- 4100K
- 5300K
- 6500K
- Operating Voltage 24Vdc
Power Supply
- Remote Class 2 Power Supply Handles up to 60W
- Input Voltage 100-240Vac, 50-60Hz
- Universal Power Supply Available upon request
- Daisy Chain Link multiple light boxes for easy, clean installation & minimal visible wiring using just one outlet

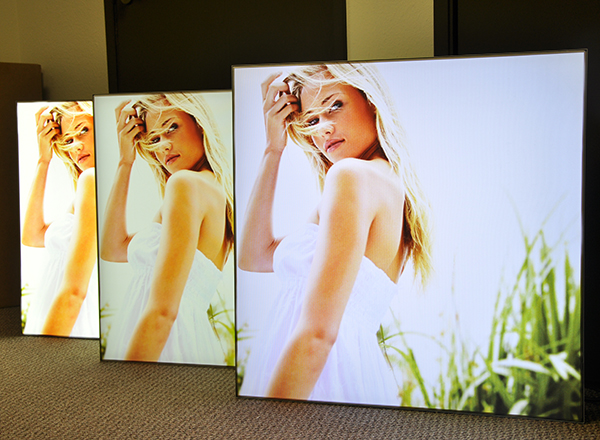

Powered by Lattice and Perimeter Lighting technology, the Profile 100 Fabric Light Box is ideal for displaying graphics of all sizes, providing bright and even illumination. The slim profile and frameless design provides a clean, sleek, and modern look, and also allows for seamless application and the ability to blend in easily with any environment.
The Profile 100 Fabric Light Box is used in different environments spanning from retail to exhibition, displaying promotions and branding efforts, as well as illuminating art work and graphics. To view some of our projects with the Profile 100 Light Box application, click here.
Product Features
Quick Graphics Changes
Power: 12V/24V
Slim Profile
80% Energy Efficient
Frameless Design
Plug & Play
Wall Mount – Seamless Application
Custom Sizes
Outstanding Brightness
Custom Frame Colors
Even Lighting – No Dark Spots
Pre-Assembled – Ships Ready To Use
Hanging
Certifications
