LUXMESH™ SLEEK LED BACKLIGHT
LUXMESH™ SLEEK
Uniform backlighting for slimmer applications
LUXMESH™ Sleek brings the versatility of lattice backlighting into a more compact and cuttable format. Featuring closely spaced LEDs and a 170° wide-beam optical lens, Sleek delivers smooth, uniform illumination with a recommended minimum air gap of just 2.36” (60mm)—making it an ideal solution for slimmer fabric light boxes and other space-sensitive large-format applications.
Best for: shallow fabric light boxes, retail displays, signage, and large-format applications where reduced installation depth and consistent illumination are essential.
LUXMESH™ Sleek uses closely spaced LEDs and a 170° wide-beam optical lens to provide smooth, uniform backlighting with a recommended minimum air gap of 2.36” (60mm). Standard color temperatures include 3000K, 4100K, 5300K and 6500K.
Product Specification
Safety Standard
CUL Listed
LED Module
LED Count 7 sections/stick, 2 LEDs/cutting section

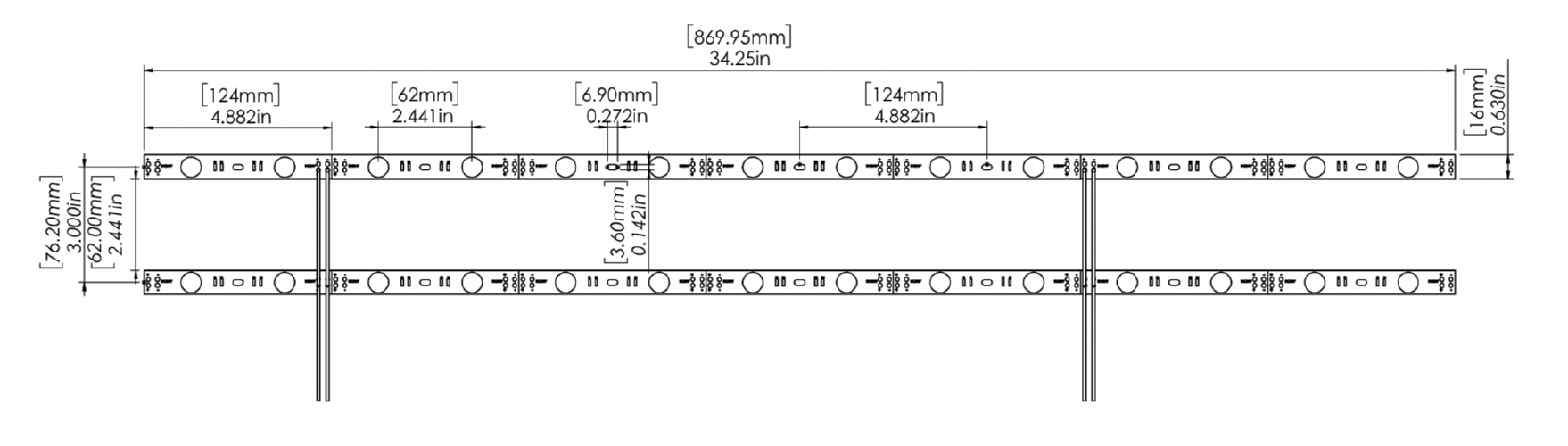

PCB 34.25” (w) × 0.63” (h) [870mm (w) × 16mm (h)]
LED Pitch 2.44” (62mm)
Stick-to-Stick Pitch 2.44” (62mm)
No. of Sticks per Roll 18 sticks
Ambient Temperature -4°F~+176°F (-20~+80°C)
IP Rating IP22
Environment Indoor applications
*EXTERIOR applications (IP 65) available upon request
Mounting
Method
- Screws or
- double-sided tape
Optimal Cabinet Depth** min 2.36” (60mm)
**Optimal depth to prevent hot spots
Light Source
Wide Beam Angle 170° with Optical Lens
Life Expectancy 50,000+ hours
Color Rendering CRI 80+, CRI 90+ available upon request
Standard Color 3000K, 4100K, 5300K, 6500K
Dimmable Compatible with pulse-width modulation dimming (PWM) & 0-10V dimming
UL Listed E477011
Power Supply
Input Voltage 24Vdc constant voltage
Wire Size 20 AWG 2 Wire
Please use only with Class 2 power supply
Connector Type
- DC Barrel Jack
- Hardwire
- Molex
- Sign Cabinet Backlighting
- Fabric Light Box Backlighting
- Ceiling & Wall
- Backlighting
- Large Format Illumination
- Simple Curved Applications
…And Many More!
Product Features
Strong Color Rendering
Wide Beam Angle
Outstanding Brightness
80% Energy Efficient
Even Lighting — No Dark Spots
Custom Roll Lengths
Long LED Lifespan
Slim Application
Constant Power – 24V
Contours For Simple Curves
Effective Backlighting Solution
Cuttable
Assured Quality
