LUXNEON™ Low 1005 LED Neon Tube
Slim, Inward Focused Directional LED Neon Tube Lighting
TOP BEND
LUXNEON LOW 1005 – TOP BEND
LUXNEON™ Low 1005 LED Neon Flex Tube provides more creative lighting options with its convex bending and slim shape. Flex this slim tube in an up and downwards motion to achieve inward focused directional lighting without visible hotspots at 90+ CRI. Straightforward, fuss-free installation via aluminum or plastic mounting clips means less stress and labor costs. Fully field cuttable with short cutting segments every 0.82″ for last minute on-site modifications.
DOWNLOAD
SPECIFICATION
PHOTOMETRICS
INSTALLATION
APPLICATIONS
DOWNLOAD
SPECIFICATION
MECHANICAL
Parameters
- LED Count 98 LEDs/ft (336 LEDs/m)
- LED Roll Length 16 ft 3/8″ (5m) or built to order
- Tube Dimensions Tube cross-section: 0.18″ (4.8mm) x 0.39″ (10mm) · Front cap: 0.50″ (12.7mm) x 0.98″ (25mm) · Closing end cap: 0.32″ (8mm) x 0.41″ (10.5mm)
- Bending Diameter 2.36″ (60mm)
- Cutting Length 0.82″ (20.83mm)
Construction & Base Material
- Tube Material Silicone
- Tube Max. Run 16.4ft (5m). Length may be customized for your order
- PCB Material Triple layered polymide film with SMD LEDs
- End Cap Material Silicone
- Diffuser Material Milky White Silicone
- Substrate Material Silicone
- Mounting Clip Material Plastic
- Flammability Rated UL94 V-2 flame retardant
Compliance & Regulatory Approval
UL E477011 · cUL E477011 · RoHs · CE · Lead Free · Warranty 5 years
Colors
- Standard White Silicone Tubing Milky white silicone
ELECTRICAL
Parameters
- Wide Beam Angle 113°
- Lamp Life 50,000+ hours
- Standard Color Temperatures 3000K · 4100K · 5300K · 6500K
- Custom Color Temperatures Available Please inquire for more information
- Lumen Output See Photometric Data Table
Dimming
- Pulse-width modulation dimming (PWM)
- 0-10V dimming
- Magnetic low voltage (MLV)
Power Supply
- Input Voltage 24VDC constant voltage
- Input Current 0.09 mA/ft (0.3 mA/m)
- Power Consumption White color temperatures 2.20 W/ft (7.2 W/m)
- Wire Size 20 AWG 2 Wire
- Please Use Only with Class 2 Power Supply
- Max. No. of Wire Connections 2
- Connector Type Molex® · DC Barrel Jack · Hardwire

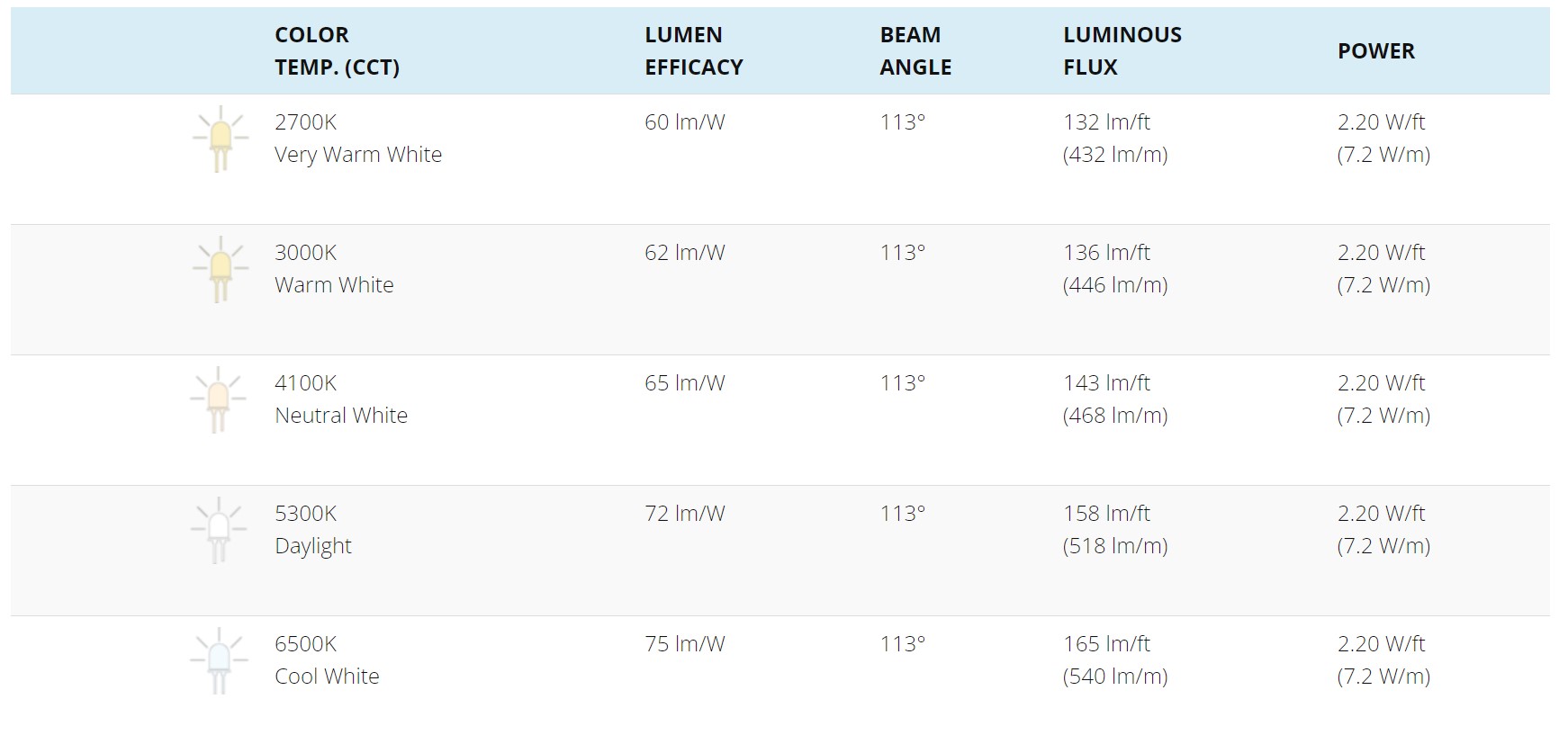

PHOTOMETRICS
INSTALLATION
INSTALLATION
- Field Cuttable LUXNEON™ is fully field cuttable every 0.82″ (20.83mm).
- Field Bendable LUXNEON™ is field bendable and may be flexed or curved for your retail or architectural environment. It is designed for convex (up and down) bending only.
- Environment Indoor and outdoor location safe. For wet location installations, please make sure to seal the entry points completely with silicon to prevent water from entering the product.
- IP67 Rated
- Operating Temperature -4˚F ~ +140˚F (-20˚C ~ +60˚C)
- Heat Sink Not required for installation.
- Mounting May be mounted with mounting clips or with a mounting channel.
- Connecting Multiple Tubes LUXNEON™ may be purchased custom cut to your desired length or ordered in 5m reels and field cut to size.
SAFETY
- Electric Code Compliance Please make sure to install LUXNEON™ in accordance with standard national and local electrical codes.
- Class 2 Compliance When cutting your LUXNEON™ tube, keep in mind that Class 2 compliance restricts the max load of the product to 96W.
APPLICATIONS
APPLICATIONS
- Outdoor/Indoor Decorative Lighting
- Cove Lighting
- Awning Lighting
- Wall Wash Lighting
- Architectural Lighting
- Curved Embedded Lighting
- Decorative Linear Lighting
- Channel Letters
- Signage
- Border Tubing
- Accent Lighting
- Compact, Space-Sensitive Applications
- Retail Applications
Product Features
Bend & Flex Sideways
UV Safe
Slim
Easy to Install
Wide Beam Angle – 120°
Plug & Play
V-2 Flame Retardant (UL94)
Long LED Lifespan – LM-80
Field Cuttable for Custom Lengths
IP67 Dust & Temporary Immersion safe
Hotspot-Free Neon-Like Illumination
