LUXLINEAR™ NORMAL 1715
LUXLINEAR™ NORMAL 1715
Indoor/Dry Location Series
MIX & MATCH
For most standard custom applications requiring a slim, rigid lighting solution, we offer our LUXLINEAR™ Normal Profile 1715 LED light tubes. We custom cut and assemble each tube light unique to your application needs. Each tube is conveniently designed to be compatible with various LUXLINE™ LED Light Strips. Featuring superior craftsmanship, you won’t be disappointed when you choose LUXLINEAR™.
DOWNLOAD
SPECIFICATION
LUMEN DATA
APPLICATIONS
DIMENSIONS
COMPATIBILITY
DOWNLOAD
SPECIFICATION
MECHANICAL
Construction & Base Material
- Extrusion Material Anodized aluminum
- Extrusion Max. Run 6.5ft (2m) per individual extrusion. For applications longer than 6.5 ft, multiple individual extrusions can be mounted side by side without affecting lighting performance.
- Mounting Clip Material Steel
- End Cap Material Polypropylene
- Diffuser Lens Material Polypropylene
Compliance & Regulatory Approval
- UL E477011 · RoHs · CE · Warranty 5 years
Tube Options
- Diffuser Lens Frosted · Clear · No lens
Finishes
- Aluminum Finish Anodized aluminum
- Available Powdercoat Finish Gloss · Matte · Textured · Metallic
- Available Colors
ELECTRICAL
Max. Load & Max LED Strip Width
- Max. Load Depends on the type of LUXLINE™ or equivalent LED strip that is used to power the LUXLINEAR™ LED Tube extrusion. Please reach out to a Sales Team Member for more information about Max Load & Power Capacity for our various LUXLINE™ LED Strips.
- Max. LED Strip Width This profile will only accommodate strips up to and less than 0.48” (12.2mm) wide.
SAFETY
- Electric Code Compliance Please make sure to install LUXLINEAR in accordance with standard national and local electrical codes.
- Outdoor Usage LUXLINEAR is meant to be used for indoor dry locations applications only.

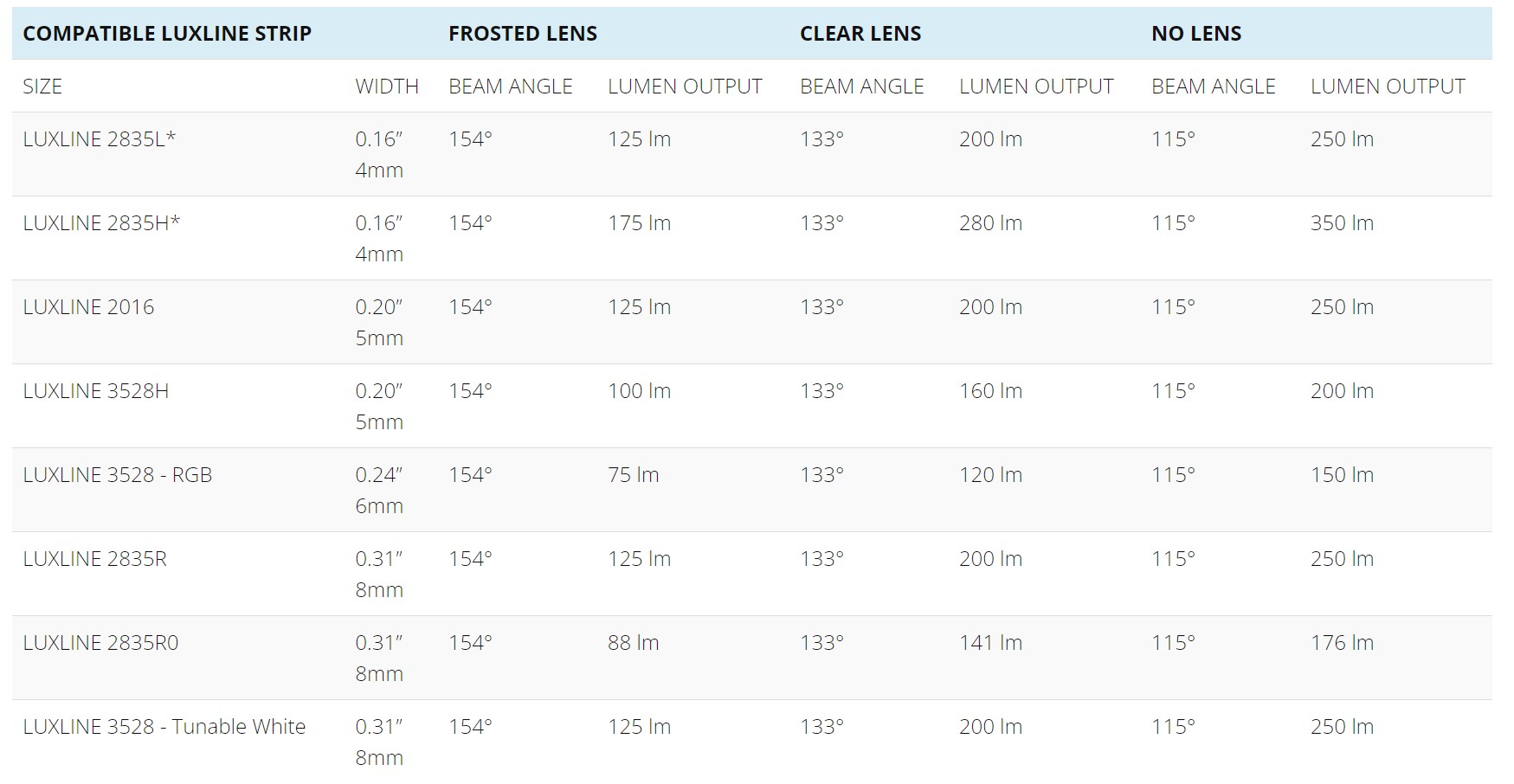

LUMEN DATA
APPLICATIONS
Installation
- Field Cuttable LUXLINEAR™ is fully field cuttable and may be cut at any point along the extrusion or LED strip.
- Environment Indoor/dry location only.
- Indoor Damp Location Safe Only with appropriate IP rating and proper damp location treatment to the LUXLINE™ LED strip contained within the assembled extrusion.

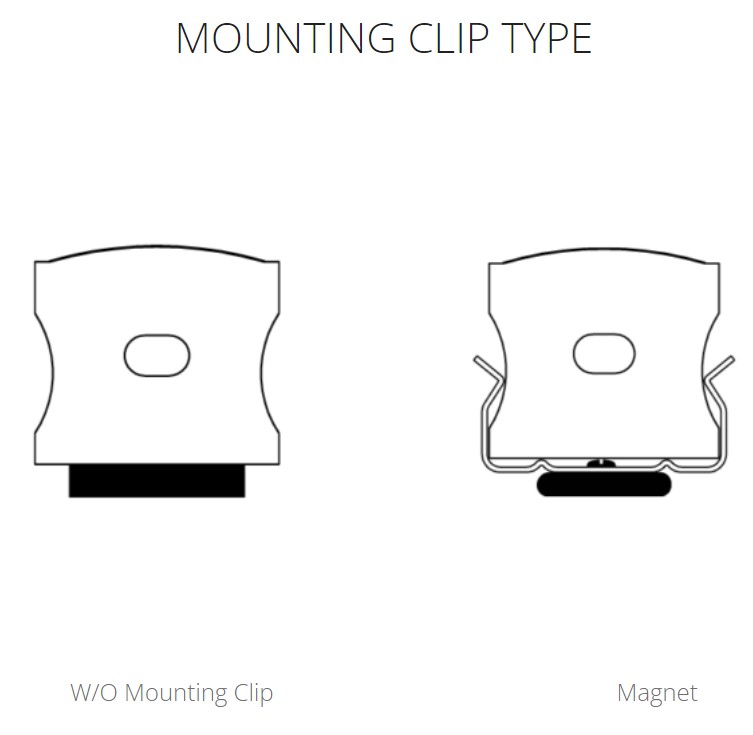

- Mounting Extrusion may be mounted with 3M adhesives or by drilling with provided mounting clips.

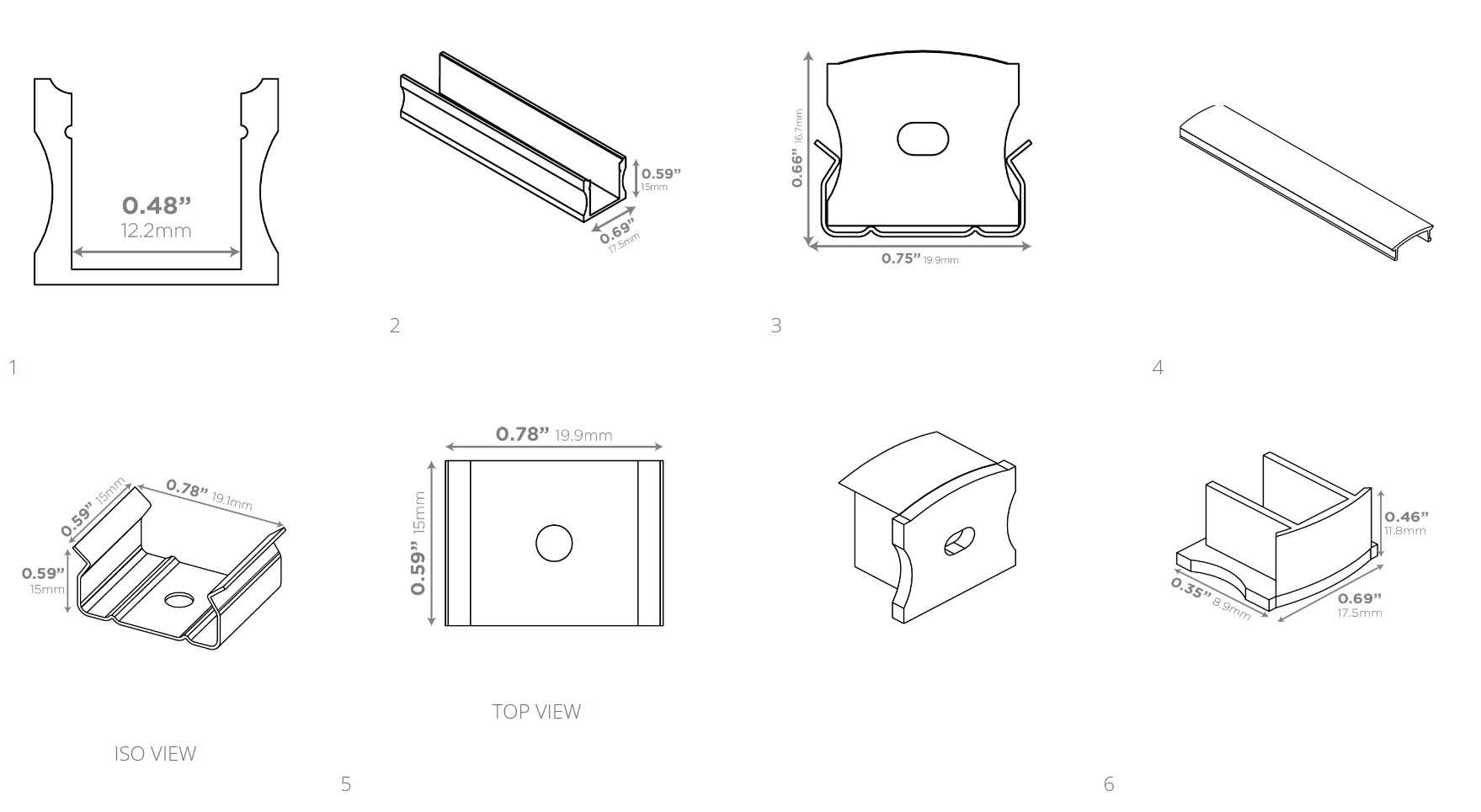

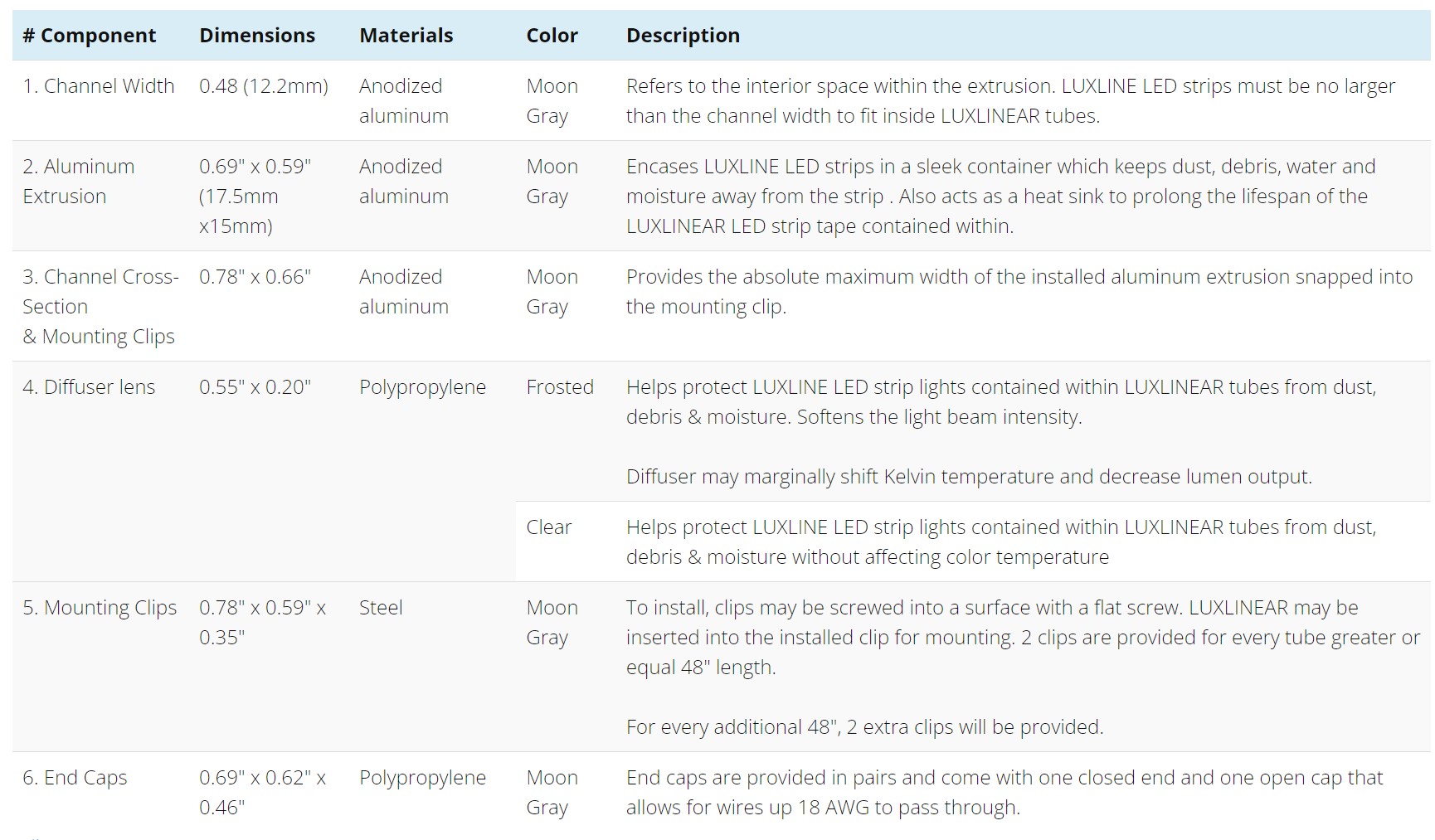

DIMENSIONS
COMPATIBILITY
Customize Your Fit
LUXLINE™ LED Strips are compatible with many LUXLINEAR™ LED Tube profile extrusions. Take a look below to see which strips fit this particular strip profile.
Product Features
Powered by LUXLINE LED Strip
Slim Width
Comes with 2 mounting clips
Protects against dust & debris
Custom Lengths
Ships Fully Assembled
Certifications
