LUXLINEAR™ LOW 1707
LUXLINEAR™ LOW 1707
Indoor/Dry Location Series
SLEEK ILLUMINATION
Our LUXLINEAR™ Low Profile 1707 LED light tubes are specially designed to fit into and illuminate slimmer, compact fixtures and applications. The profile’s shorter height provides a way to hide the light fixture inside or under a fixture’s lip for a sleeker look. Put your light fixture on display, or conceal it so that your design looks seamless – the choice is yours. Like all LUXLINEAR™ products, this profile is compatible with many LUXLINE™ LED Light Strips.
DOWNLOAD
SPECIFICATION
LUMEN DATA
APPLICATIONS
DIMENSIONS
COMPATIBILITY
DOWNLOAD
SPECIFICATION
MECHANICAL
Construction & Base Material
- Extrusion Max. Run 6.5ft (2m) per individual extrusion. For applications longer than 6.5 ft, multiple individual extrusions can be mounted side by side without affecting lighting performance.
- Extrusion Material Anodized aluminum
- Mounting Clip Material Steel
- End Cap Material Polypropylene
- Diffuser Lens Material Polypropylene
Compliance & Regulatory Approval
- UL E477011 · RoHs · CE · Warranty 5 years
Tube Options
- Diffuser Lens Frosted · Clear · No lens
Finishes
- Aluminum Finish Clear anodized aluminum
- Available Powdercoat Finish Gloss · Matte · Textured · Metallic
- Available Colors
ELECTRICAL
Max. Load & Max Led Strip Width
- Max. Load Dependent on the type of LUXLINE™ or equivalent LED strip used to power the LUXLINEAR™ LED Tube extrusion. See LUXLINE™ or relevant LED strip specification for more details.
- Max. LED Strip Width This profile will only accommodate strips up to and less than 0.48” (12.2mm) wide.
SAFETY
- Electric Code Compliance Please make sure to install LUXLINEAR™ in accordance with standard national and local electrical codes.
- Outdoor Usage LUXLINEAR™ is meant to be used for indoor dry locations applications only.
LUMEN DATA
APPLICATIONS
Installation
- Field Cuttable LUXLINEAR™ is fully field cuttable and may be cut at any point along the extrusion or LED strip.
- Environment Indoor/dry location only.
- Indoor Damp Location Safe Only with appropriate IP rating and proper damp location treatment to the LUXLINE™ LED strip contained within the assembled extrusion.
- Mounting Extrusion may be mounted with 3M adhesives or by drilling with provided mounting clips.

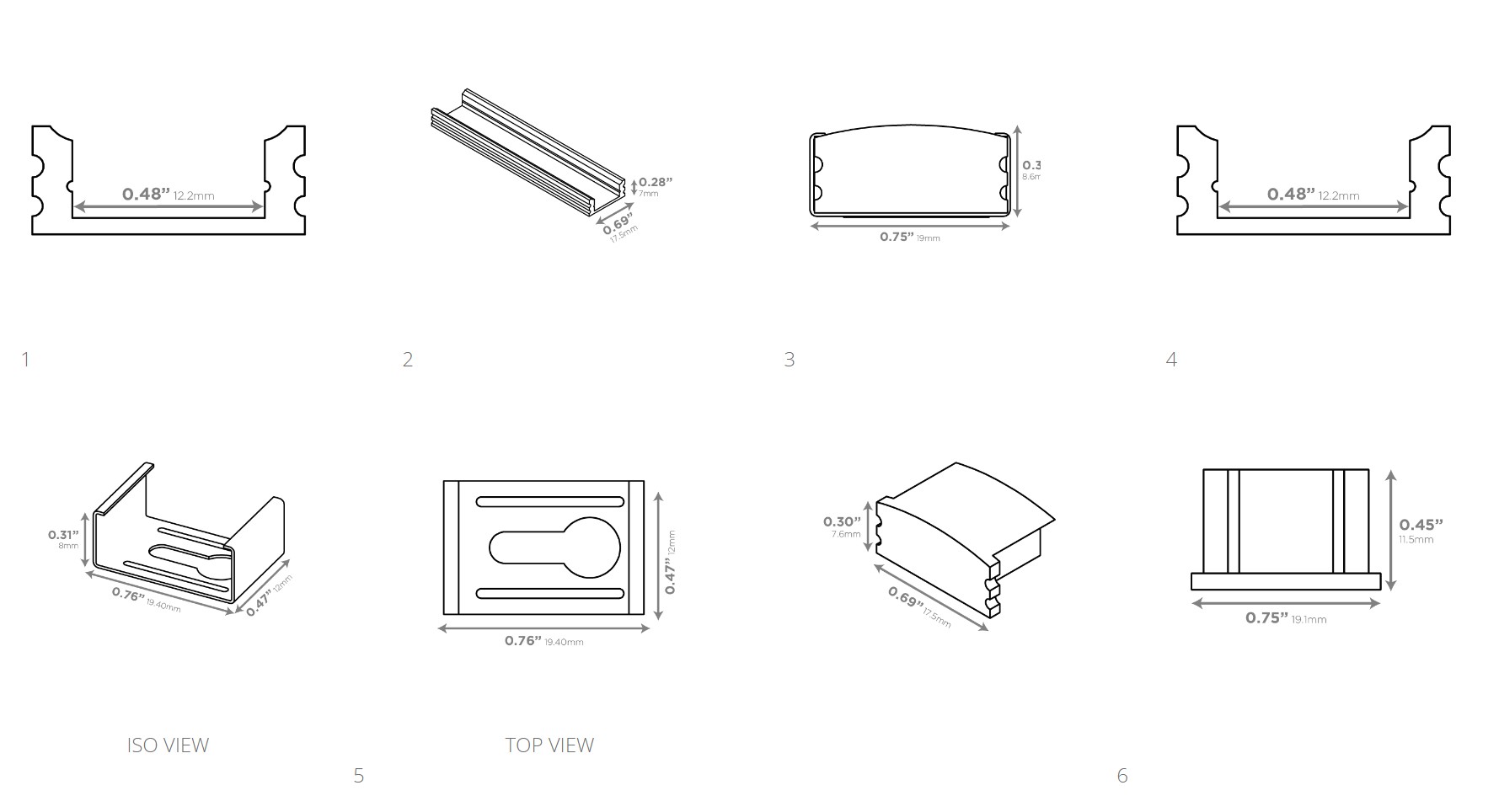

DIMENSIONS
COMPATIBILITY
Customize Your Fit
LUXLINE™ LED Strips are compatible with many LUXLINEAR™ LED Tube profile extrusions. Take a look below to see which strips fit this particular strip profile.
Product Features
Powered by LUXLINE LED Strip
Slim Width
Comes with 2 mounting clips
Protects against dust & debris
Custom Lengths
Ships Fully Assembled
Certifications
