LUXCLARA™ CHIP ON BOARD (COB) - CLASSIC
LUXCLARA™ CHIP ON BOARD (COB) - CLASSIC
SEAMLESS CONTINUOUS LIGHTING
Indoor Location Series
The LUXCLARA™ line is LEDCONN’s Chip On Board (COB) product line. This advanced manufacturing technology features the LED chip directly bonded onto the flexible printed circuit board (FPCB).
As a result, COB offers a more condensed design leading to reduction in the LED chip size, allowing the LED chips to be closely packed together, and providing a uniform light output.
DOWNLOAD
SPECIFICATION
LUMEN DATA
CUTTING DIAGRAM
APPLICATIONS
DOWNLOAD
SPECIFICATION
MECHANICAL
Parameters
- LED Count 97 pc/ft · 320 pc/m
- Dimensions
- Strip Height: 0.07″ (1.8mm)
- Strip Width: 0.31″ (8mm)
Compliance & Regulatory Approval
- UL E477011 · cUL E477011 · RoHs · CE · Lead Free ·
- Warranty 5 years
ELECTRICAL
Photometrics
- Wide Beam Angle 180°
- Color Rendering Index (CRI/Ra) 90+
- Color Temperatures 3000K · 4100K · 5300K · 6500K · Custom color temperatures available upon request.
- Lumen Output Ranges from 243.9 lm/ft – 289.6 lm/ft
- Efficacy Ranges from 80 lm/W – 95 lm/W
Dimming Options
- Pulse-width modulation dimming (PWM)
- 0-10V Dimming
- Magnetic low voltage (MLV)
Power Supply
- Input Voltage 24VDC constant voltage
- Wire Size 18 AWG 2 Wire
- Please use only with Class 2 power supply
- No. of Standard Connectors 2
- Connector Type Molex® · DC Barrel Jack · Hardwire
Max Load 96W (for Class 2 Compliance)
- 1 power supply 31.4ft (9.6m)
- 2 power supplies (non dimmable) 62.9ft (19.2m)

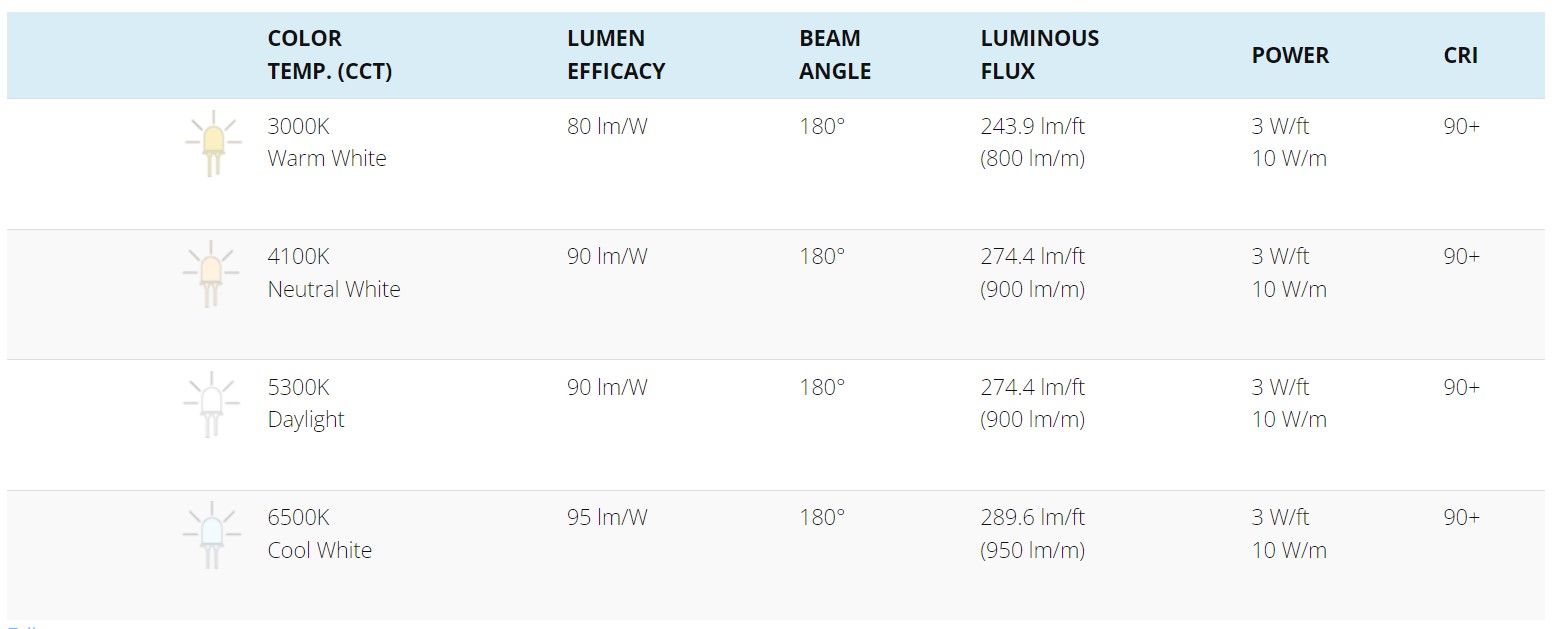

LUMEN DATA

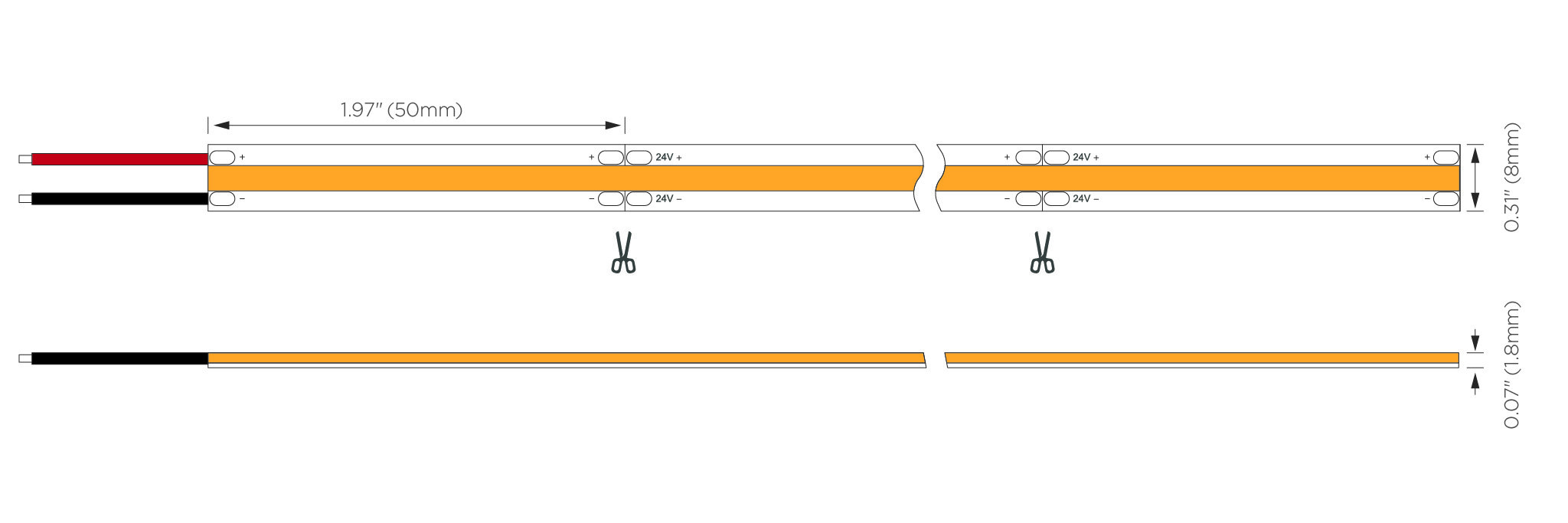

CUTTING DIAGRAM
APPLICATIONS
APPLICATIONS
- Architectural Indoor & Outdoor Entrance Facade
- Luminous Ceilings & Walls
- Indoor Ad Signage
- Outdoor Ad Signage
- Backlighting
- Architectural Lighting
- Curved Applications
- Compact, Space-Sensitive Applications
- Retail Applications
- …And Many More!
INSTALLATION
- Field Cuttable 1.97″ (50mm)
- Environment Indoor location safe.
- Operating Temperature -4˚F ~ +140˚F (-20˚C ~ +60˚C)
- Ambient Temperature -4˚F ~ +158˚F (-25˚C ~ +70˚C)
- Mounting Provided with peel & stick 3M self-adhesive backing.
Product Features
Seamless Continuous Illumination
Flexible Design
High-Density Illumination
Dimmable
Wide Beam Angle – 180°
Cost-Effective
Optimal Color Rendering – CRI 90+
Even Illumination
Certifications
