LUXPUZZLE™ LED FLEXIBLE SHEET - STANDARD
LUXPUZZLE™ LED FLEXIBLE SHEET - STANDARD
Precision Light, Fit to Your Design
Our LUXPUZZLE™ LED Flexible Sheet deliver high-efficiency performance on 24VDC, offering 90+ CRI (optional 95+ CRI) and tight color consistency (SDCM ≤3) for clean, uniform illumination.
Designed for indoor backlighting, LUXPUZZLE™ is ideal for applications like advertising light boxes, ceilings, and large curved surfaces, where a thin, adaptable lighting solution is needed.
The panels can be tiled for large-format coverage and cut at marked intervals into small modular sections to fit your exact layout. Multiple output and power configurations are available to support different brightness targets and project power allowances.
MECHANICAL
Parameters
- LED Type EPISTAR 2835 LED
- LED Count 288 LEDs per sheet (8 LEDs per 2″x4″ piece)
- LED Sheet Dimensions 12″ (w) x 24″ (h) [304.8mm x609.6mm]. Full sheets and cut pieces may be tiled together for maximum backlighting coverage.
- LED Pitch 1″ (25.5mm)
- LED Sheet Thickness
- Sheet only: 0.02″ (0.51mm)
- LED height: 0.04″ (1mm)
- Connector height: 0.31″ (8mm)
- LED Node Size 2835
- Sheet Weight 6.4oz (0.18kg)
Construction & Base Material
- Substrate Material Flexible PET
- Flammability Rated UL 94 V-0
- Metal Material Rolled copper for PCB flexibility
Compliance & Regulatory Approval
UL E477011 · cUL E477011 · RoHs · CE · Lead Free ·Warranty 5 years
ELECTRICAL
Photometrics
- Wide Beam Angle 120°
- Lamp Life 54,000+ hours
Color Rendering Index (CRI/Ra) 90+ across all color temperatures
Standard Color Temperatures 3000K · 4100K · 5300K · 6500K
Custom Color Temperatures Available Please inquire for more information.

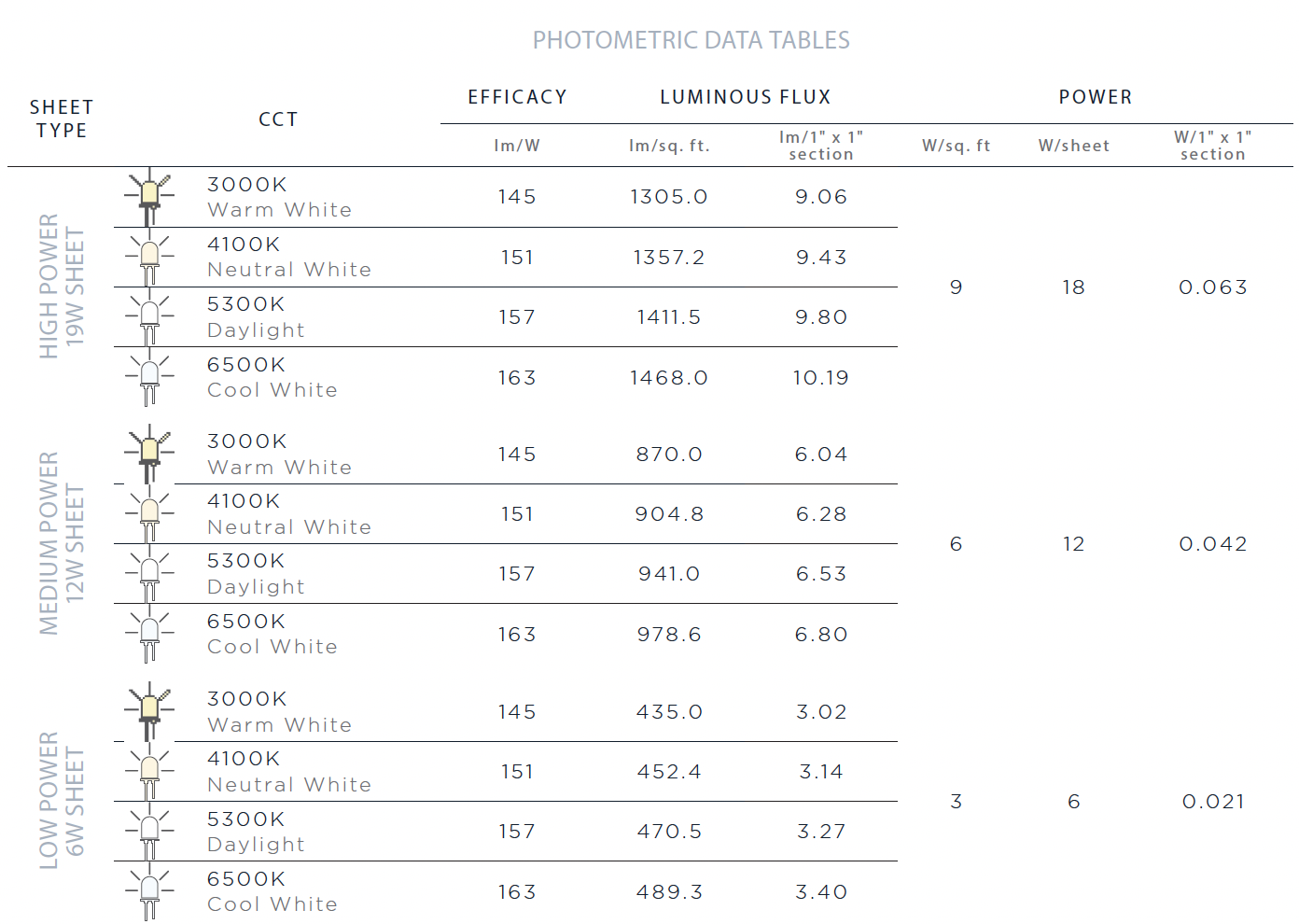

Lumen Output 408.6-2921.0 lumens per sheet. Features high brightness with superior light consistency and quality.
Dimming
- Pulse-width modulation dimming (PWM)
- 0-10V dimming
- Magnetic low voltage (MLV)
Power Supply
- Input Voltage 24VDC constant voltage
- Input Current 0.39A/ft2 (High Power), 0.25A/ft2 (Medium Power), 0.12A/ft2 (Low Power)
Power Consumption
- 6-19 W/sheet (3-9.5 W/sq ft) based on the power type
- Wire Size 20 AWG 2 Wire
- Please use only with Class 2 power supply
- No. of Standard Connectors 8
- Connector Type Molex®
APPLICATIONS
- Architectural Indoor & Outdoor Entrance Facade
- Luminous Ceilings & Walls
- Indoor Ad Signage
- Outdoor Ad Signage
- Backlighting
- Architectural Lighting
- Curved Applications
- Compact, Space-Sensitive Applications
- Retail Applications
SAFETY
- Electric Code Compliance Please make sure to install LUXPUZZLE™ in accordance with standard national and local electrical codes.
- Electrical Connectors LUXPUZZLE™ allows for up to eight (8) connections per sheet.
INSTALLATION

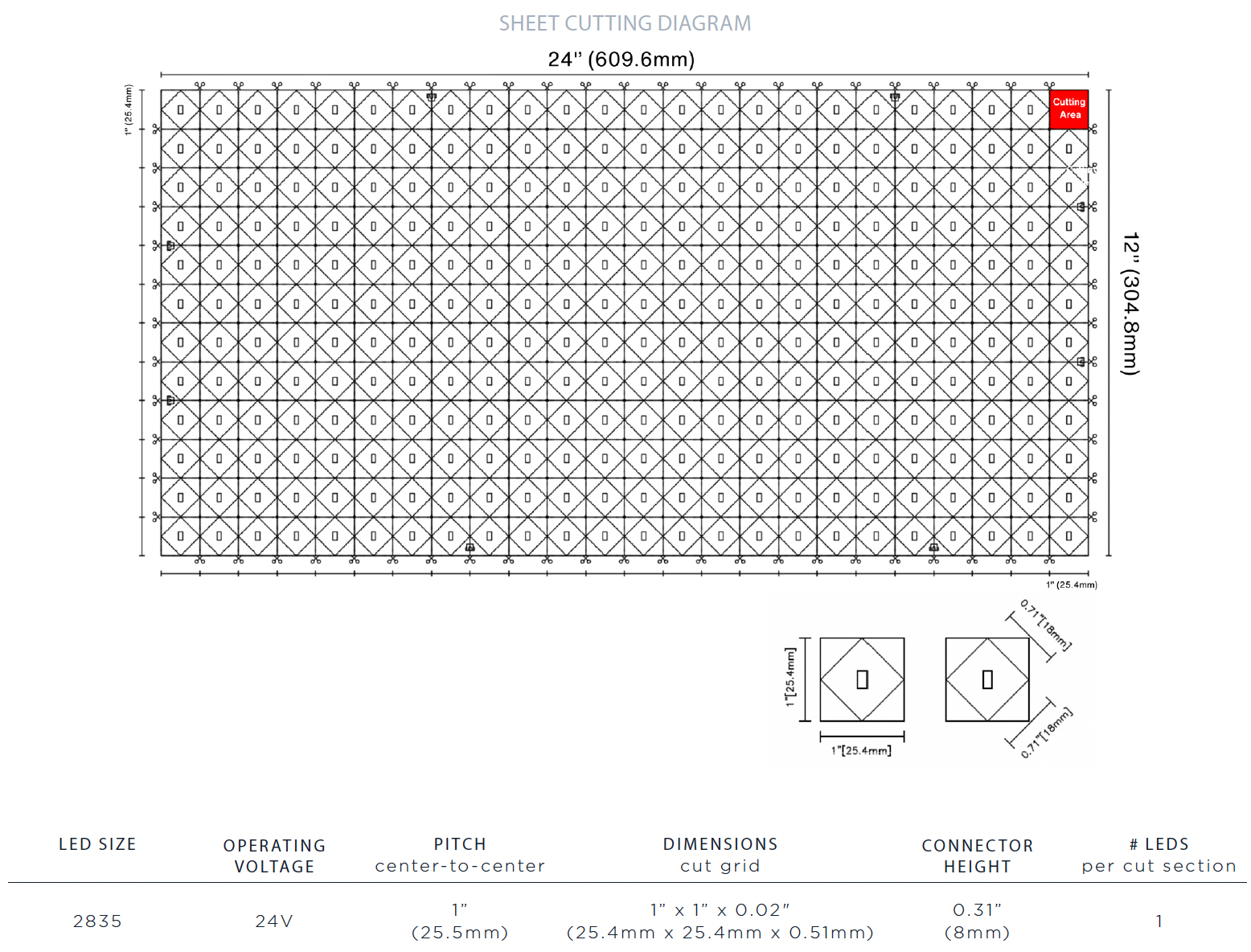

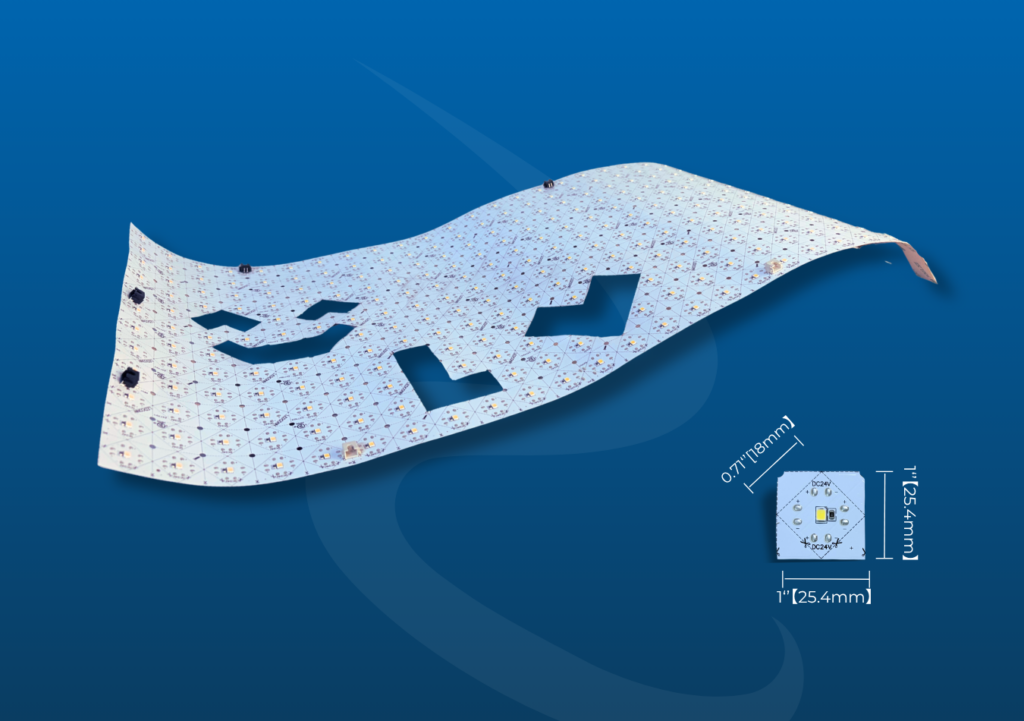

- Field Cuttable LUXPUZZLE is field cuttable horizontally or vertically along designated cutting lines. Minimum cutting unit: 1″ × 1″ (25.4 × 25.4 mm).
- Environment IP20 versions are intended for indoor/dry locations. IP64 versions are available; note that external terminals require waterproofing treatment at the connection points for wet-location use.
- Custom Configurations Multiple output and configuration options are available—contact our team for project-specific requirements.
- Working Temperature -20°C to +60°C
- Storage Temperature -25°C to +70°C
- Mounting Secure panels using appropriate adhesive or mechanical retention per application. Where applicable, use neutral glass adhesive and allow proper curing before operation.
- Wiring / Tiling Multiple Sheets Follow + / – polarity and panel direction when linking output of one panel to input of another. Incorrect direction or polarity may prevent illumination. For the 288 version, max run is 5 panels in a single-feed configuration. “+” corresponds to the white-red wire.
- Curved Applications LUXPUZZLE can be flexed for curved/radius applications to fit your environment.
Product Features

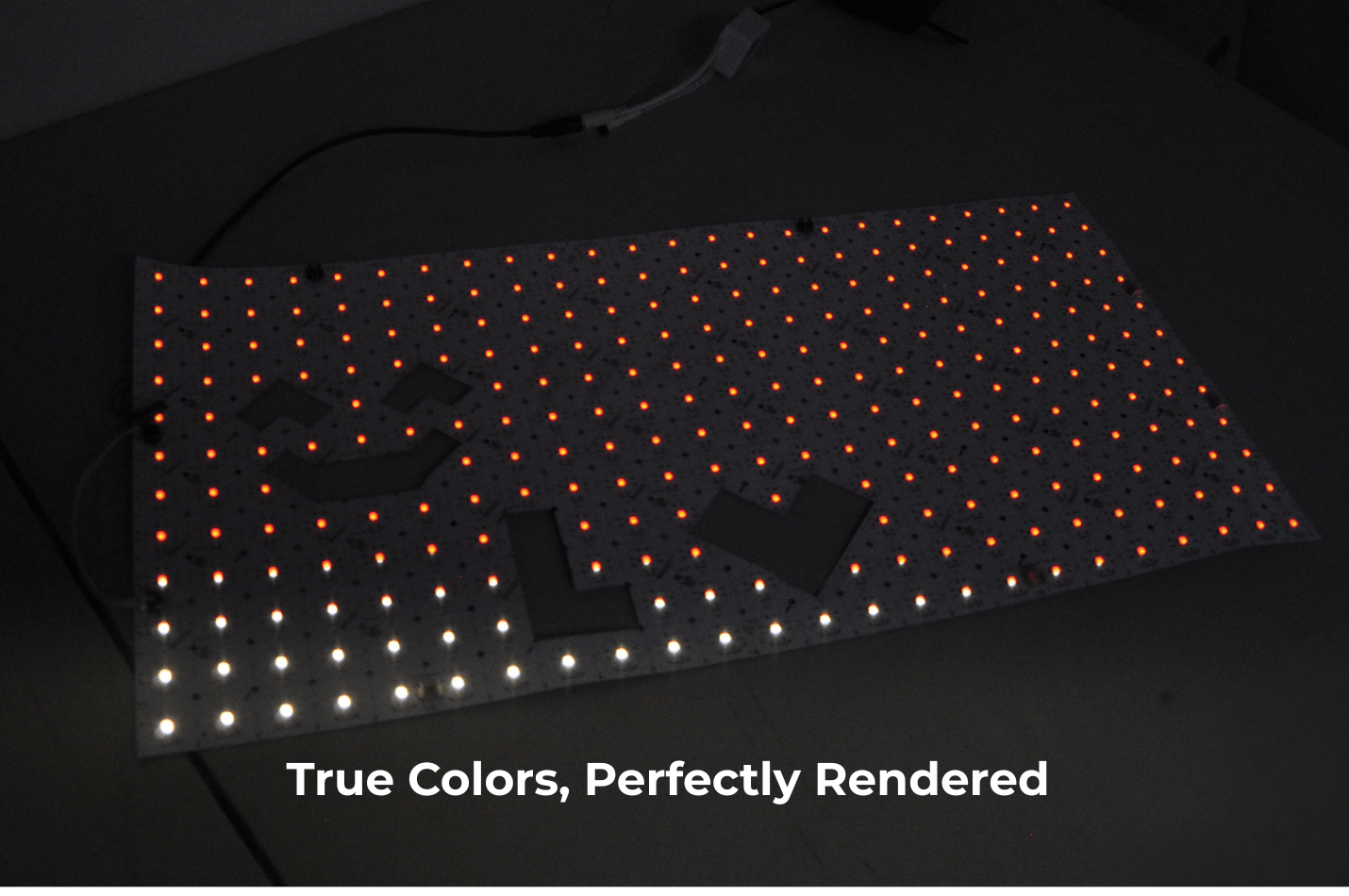

Strong Color Rendering

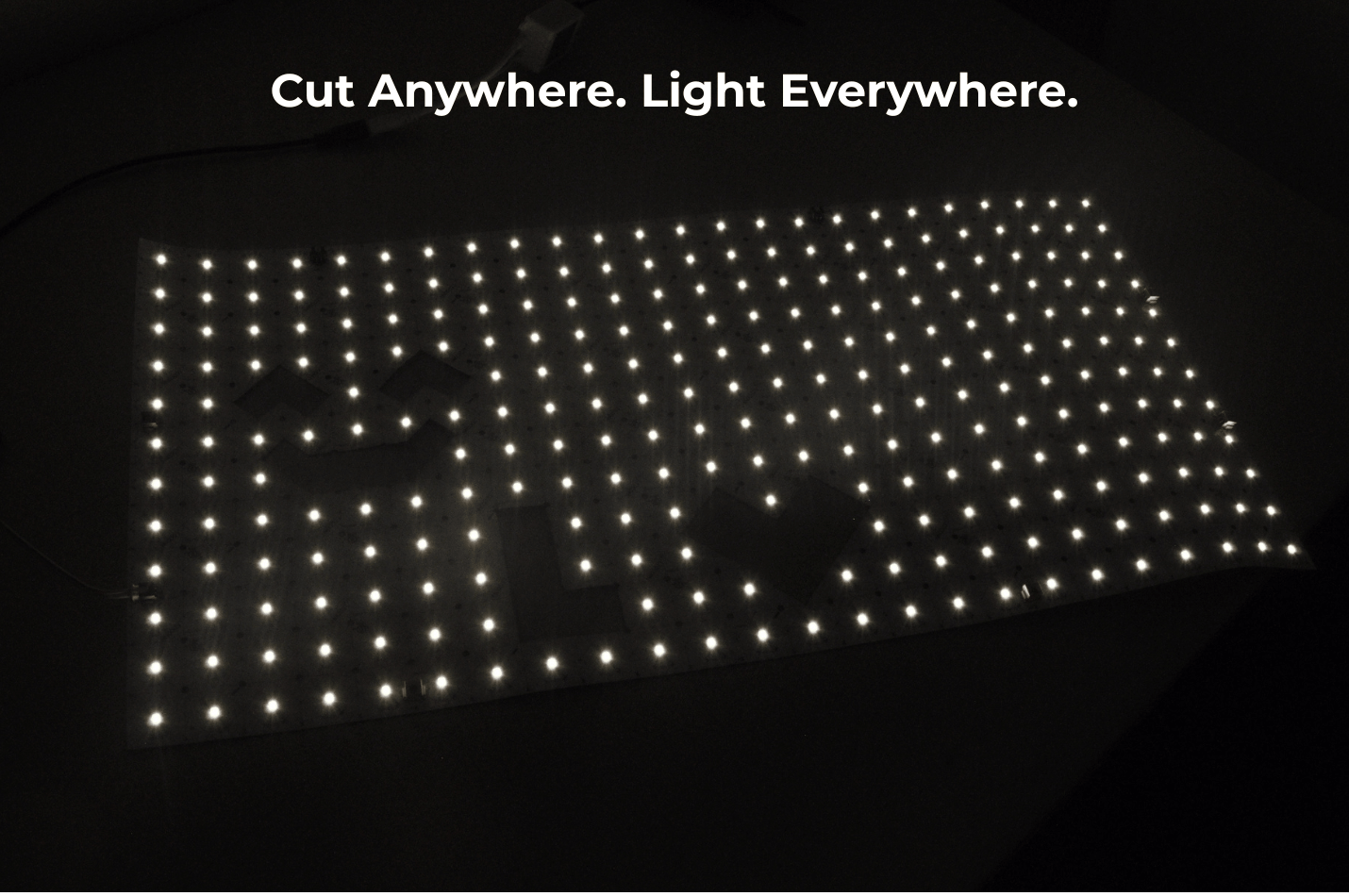

Cuttable

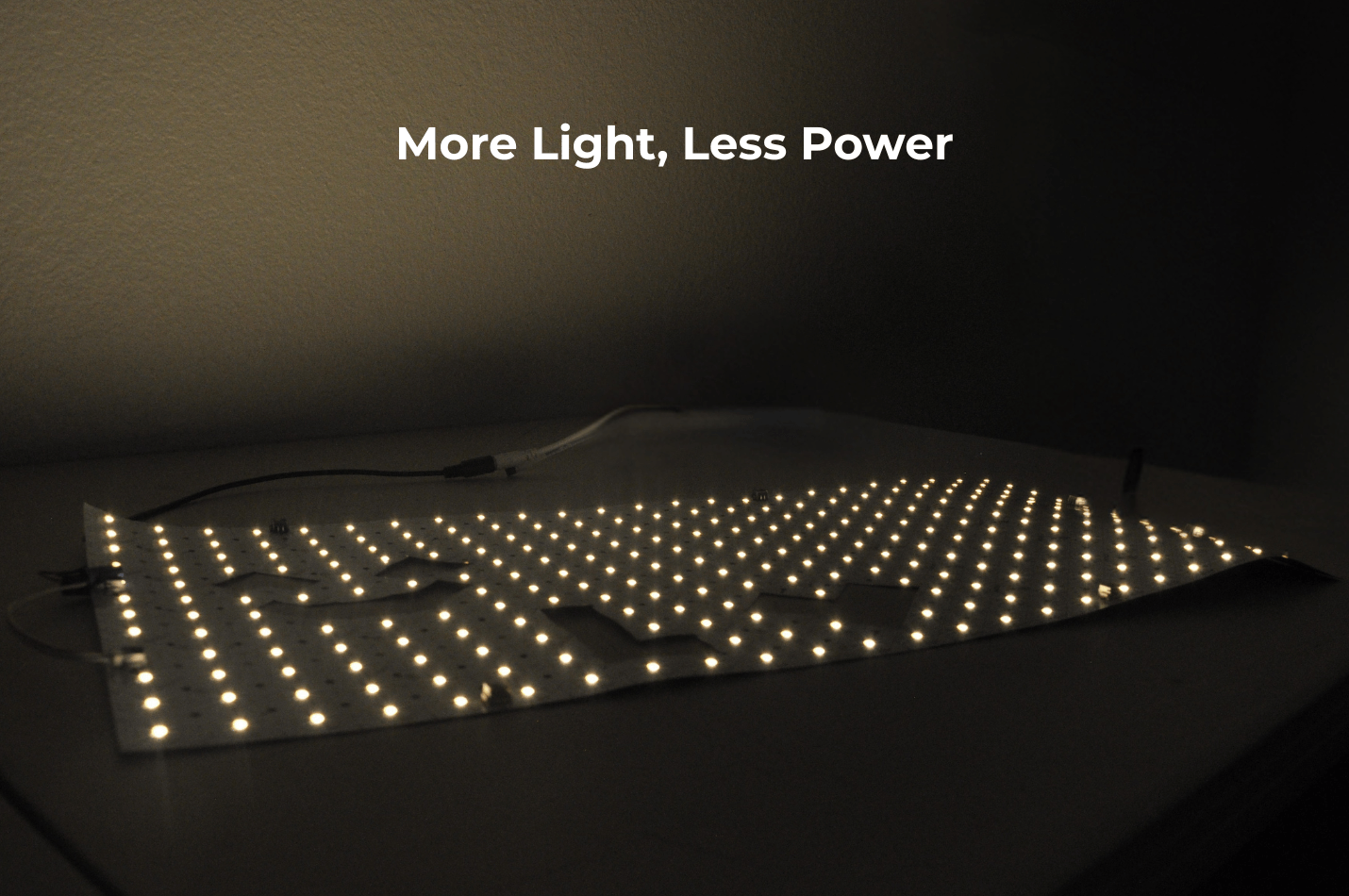

High Efficacy
Tile Sheets for Greater Coverage

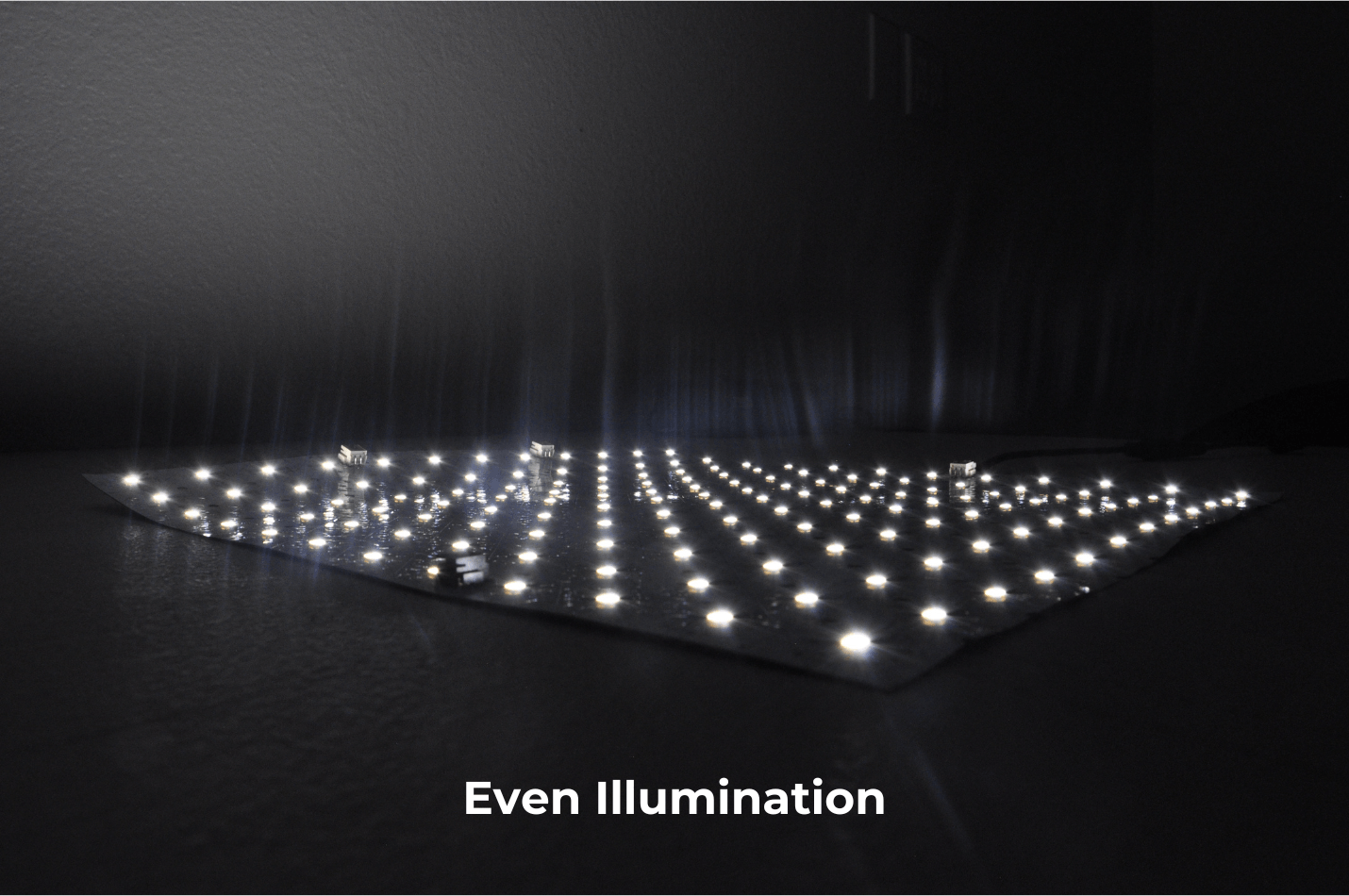

Even Illumination
CROSSWIRED Cut Sections Illuminate
Certifications
